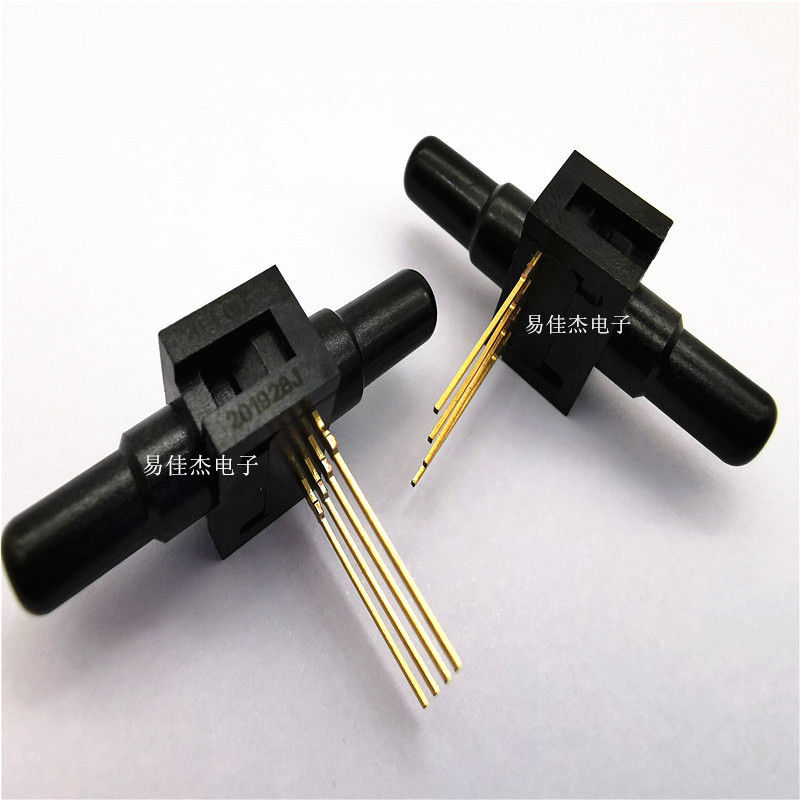

24PCEFA6D Pressure Sensor For Power Management Systems

                                     24PCEFA6D Pressure Sensor For Power Management Systems

Electrical Parameters:

• Supply Voltage: 10V DC
• Output Type: Analog (25mV–45mV signal)
• Linearity: 0.25% F.S.
• Hysteresis: 0.15% F.S.
• Repeatability: 0.15% F.S.

Physical Characteristics:

• Mounting Style: Through-Hole
• Port Size: 0.2-inch (5mm) dual male tubes (barbless ports)

Operating Environment:

• Temperature Range: -40°C to 85°C
• Moisture Sensitivity Level (MSL): Level 1 (unlimited)

Product Features:

• Compact SMT (Surface Mount Technology) package
• Wet-wet measurement capability (both ports can contact liquids)
• High performance, reliability, and accuracy based on mature piezoresistive MEMS sensing elements

Application Fields:

• Power management systems
• Industrial equipment
