DC002NDC4 Pressure Sensor For Being Integrated Into Infusion Pumps Medical Equipment

DC002NDC4 Pressure Sensor For Being Integrated Into Infusion Pumps Medical Equipment
DC002NDC4 Pressure Sensor For Being Integrated Into Infusion Pumps Medical Equipment DC002NDC4 Pressure Sensor For Being Integrated Into Infusion Pumps Medical Equipment DC002NDC4 Pressure Sensor For Being Integrated Into Infusion Pumps Medical Equipment

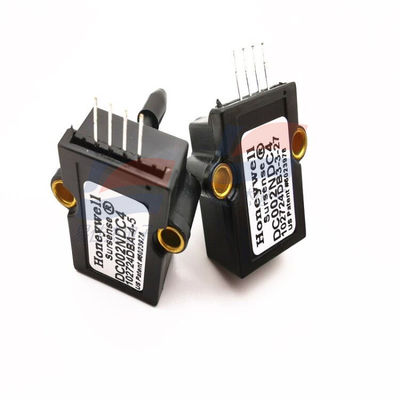

Gambar besar :  DC002NDC4 Pressure Sensor For Being Integrated Into Infusion Pumps Medical Equipment

Detail produk:
Tempat asal: Amerika Serikat
Nomor model: DC002NDC4
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 PCS
Harga: dapat dinegosiasikan
Kemasan rincian: kemasan standar
Waktu pengiriman: 5-8 hari kerja
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan: 5000 pcs
Kontak

DC002NDC4 Pressure Sensor For Being Integrated Into Infusion Pumps Medical Equipment

Deskripsi
Jangkauan suhu operasi: - 25 ° C hingga 85 ° C Kisaran Tegangan Keluaran: 0,25 V hingga 4,25 V atau 2,25 V hingga 6,25 V
Arus suplai: 4 Ma (tipikal) Tegangan suplai: 3.0 V hingga 16.0 V, nilai khas adalah 5 V
Keakuratan: ±0,05% Rentang Tekanan: 0 psi hingga 0,072 psi
Menyoroti:

medical infusion pump pressure sensor

,

DC002NDC4 electronic pressure sensor

,

integrated medical equipment pressure sensor



                     DC002NDC4 Pressure Sensor For Being Integrated Into Infusion Pumps Medical Equipment



  • Product Features:
    • It is a temperature - compensated differential sensor, which can provide relatively accurate pressure measurement in a certain temperature range.
    • The barbed port design is convenient for pipeline connection, which is suitable for board - mount applications.
  • Application Fields:
    • It can be used in medical equipment, such as being integrated into infusion pumps, ventilators and other equipment to measure the pressure of liquids or gases, helping medical staff to monitor the treatment process and ensure the safety of patients. It can also be used in some industrial occasions that require low - pressure measurement.





Accuracy ±0.05% --
Output Type Analog voltage --
Output Voltage Range 0.25 - 4.25 V or 2.25 - 6.25 V V
Supply Voltage 3.0 - 16.0 V, typical 5 V V
Supply Current 4 (typical) mA
Operating Temperature Range -25 - 85 °C
Mounting Style Through - hole --
Package/Case 4 - SIP module --
Port Type Dual Radial Barbed, Same sides --
Port Size Male - 0.19" (4.83 mm) tube, dual --
Body Length 21.59 mm
Body Breadth 12.95 mm
Body Height 27.43 mm
Maximum Pressure 3.61 psi (24.92 kPa) psi (kPa)



DC002NDC4 Pressure Sensor For Being Integrated Into Infusion Pumps Medical Equipment 0

Label:

Sensor Tekanan Berisi Minyak,

Sensor Tekanan Piezoresistif,

Sensor Tekanan Diferensial Piezoresistif
