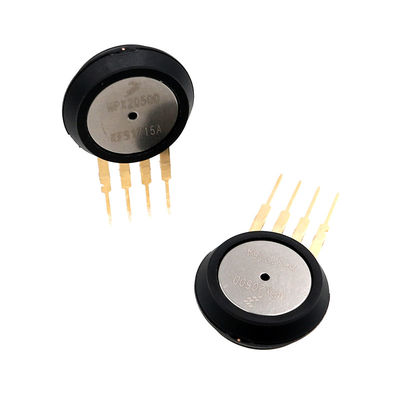

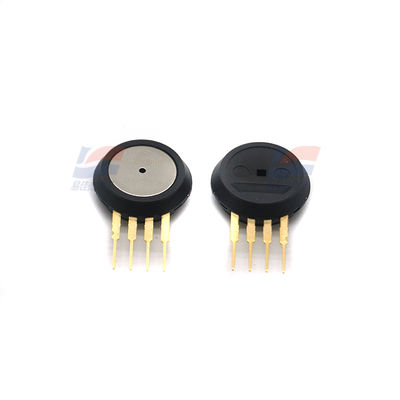

YJJ MPX2050D MPX2050DP 50Kpa Single-Chip Silicon Pressure Sensor Is Used For Barometers

Product Description:

YJJ MPX2050D 50Kpa Single-Chip Silicon Pressure Sensor Is Used For Barometers

Features:

MPX2050D has compensated for the sensitivity of the 50Kpa pressure sensor at 0.8mV.

Overview

The new single-chip silicon pressure sensor. These sensors integrate micro-mechanical technology, thin-film metallization and bipolar processes, and can provide a high-level analog output signal that is proportional to the applied pressure.

Characteristics

The temperature compensation range is from 10°C to 60°C.

Can offer surface mount (SMT) or through-hole (DIP) configurations for the strain gauges.

Durable thermoplastic (PPS) packaging

Designed for the home appliances, consumer electronics, and industrial control markets

The improved axial port is suitable for industrial-grade pipes

With an error rate of 1.5% within the temperature range of +10 to +60℃ and a 0 to 100 mm H2O range, it also has an automatic zeroing function

Pressure difference / gauge pressure, below 115 kPa

We offer a wide range of medium-range pressure sensors, which are used to measure the difference in pressure sources applied to both sides of the sensor (pressure differential), or the difference between the source pressure and atmospheric pressure (gauge pressure).

Purpose:

Height gauge

Barometer

Inhaler

Industrial control

Engine control

Weather station

Product type: Panel interface pressure sensor RoHS:
Pressure Type: Differential
Working Pressure: 0 Pa to 50 kPa
Accuracy: 0.25 %
Output Type: Analog
Installation Style: Through Hole
Working Power Supply Voltage: 10 V
Port Type: No Port
Package / Housing: Unibody-4
Minimum Working Temperature: -40 °C
Maximum Working Temperature: +125 °C
Series: MPXx2050
Package: Tray
Trademark: NXP Semiconductors
Working Power Supply Current: 6 mA
Product Type: Board Mount Pressure Sensors 125
Subcategory: Sensors
Maximum power supply voltage: 16 V
Minimum power supply voltage: 1 V
Part number alias: 935319139117
Unit weight: 1.608 g
