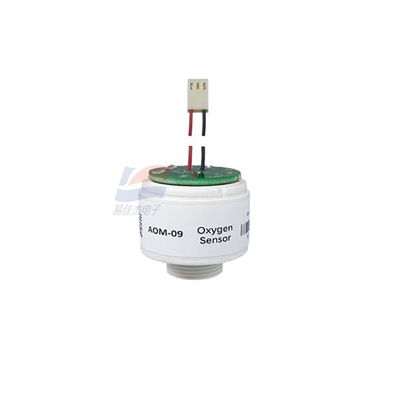

YJJ AOM-09 Oxygen Sensor Oxygen Cell Is Used As A Substitute For ITG M-09 Oxygen Concentration Module Probe In Oxygen Generators

Product Description:

YJJ AOM-09 Oxygen Sensor Oxygen Cell Is Used As A Substitute For ITG M-09 Oxygen Concentration Module Probe In Oxygen Generators

Features:

AOM-09 oxygen sensor is an electrochemical sensor specifically designed for measuring oxygen concentration in medical equipment. It features a molded body design, with characteristics such as rapid response and long service life.

AOM-09 oxygen sensor does not require an external power supply during operation. It has undergone professional and accurate product calibration and temperature compensation upon factory production. It can be used as a sensing component in oxygen analyzers, such as oxygen generators' control devices, medical ventilators, anesthesia equipment, incubators, etc.

Product model: AOM-09

Working principle: Voltage divider electrochemistry

Output voltage: 9 - 13 mV (in air)

Measurement range: 0 - 100

Te response time: < 15 seconds

Linearity: Full-scale linearity

Temperature compensation: < 2% of full scale, at 0 - 40°C

Load resistance: > 10k

Interface: Molex 3-pin connector (2.54mm, with connecting wire)

Shell material: White ABS

Weight: Approximately 40 grams

Operating temperature range: 0 - 50°C

Operating pressure range: 0.5 - 2.0 Bar

Operating humidity range: 0 - 99% RH (no condensation)

Long-term drift: < 5% (voltage attenuation/year, 100% 0, in the environment)

Service life: 1.5 x 10^6 hours (20°C)

Shelf life: 13 months from the date of shipment

Specifications:
