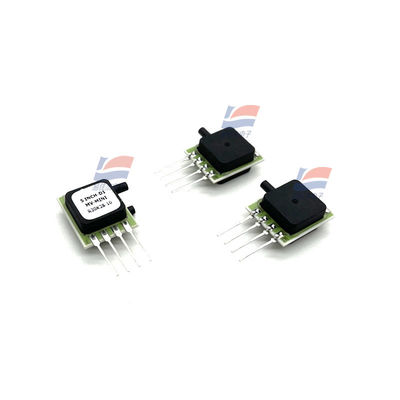

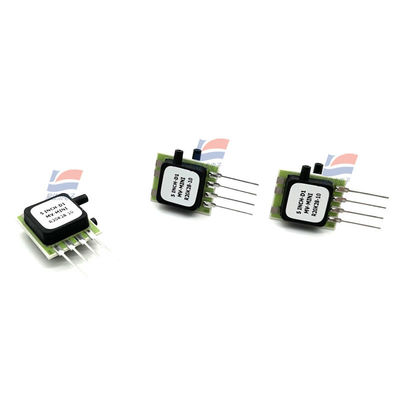

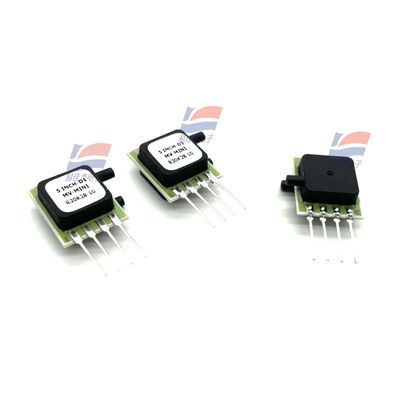

YJJ 4 INCH-D-CGRADE-MINI Bidirectional ±1Kpa Silicon Micro-Mechanical Structure Pressure Sensor

Product Description:

YJJ 4 INCH-D-CGRADE-MINI Bidirectional ±1Kpa Silicon Micro-Mechanical Structure Pressure Sensor

Features:

Main parameters of the 4 INCH-D-CGRADE-MINI pressure sensor are as follows:
Core parameters
‌Pressure range‌: Bidirectional ±1Kpa (1000 Pa)
Working voltage: 16V
Operating temperature: -25℃ to +85℃
Other characteristics
‌Output signal‌: Differential microvolt signal (0mV to 25mV), proportional to the power supply voltage ‌
Packaging form: SIP4 module, size 0.18" dual tubes
Accuracy: No specific numerical value is given, but it is mentioned that a silicon micro-mechanical structure is used to enhance the linear output.

Product type: Board interface pressure sensor RoHS:

Pressure type: Differential

Accuracy: 0.25%

Output type: Analog

Port type: Dual Radial Barbless

Encapsulation / Housing: CPC

Minimum operating temperature: -25°C

Maximum operating temperature: +85°C

Series: ACPC C-Grade

Trademark: Amphenol All Sensors

Port size: 0.3 in

Product type: Board Mount Pressure Sensors 10

Subcategory: Sensors
