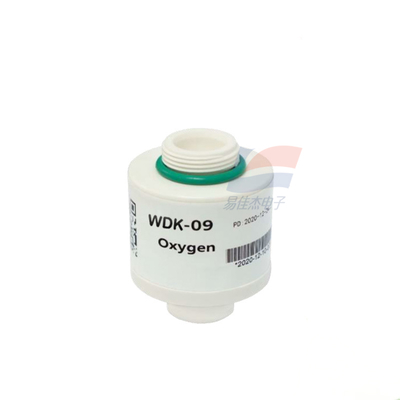

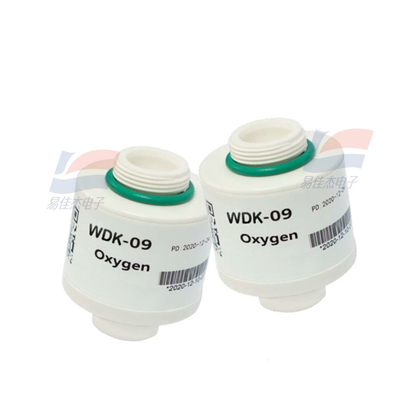

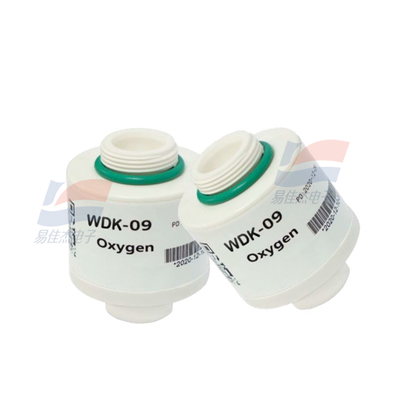

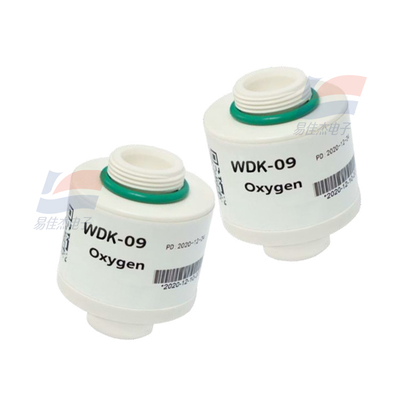

YJJ WDK-09 Electrochemical Oxygen Sensor Used For Measuring Oxygen Concentration In Medical Equipment

Product Description:

YJJ WDK-09 Electrochemical Oxygen Sensor Used For Measuring Oxygen Concentration In Medical Equipment

Features:

Oxygen sensor

l Li ne ar out put

l No exter nal power supply

l Tem per at u re compensat ion

l Fast response

l Acc urat e and reli abl e

l An ti- int er fer ence

Product Summary

The WDK-09 is an electrochemical oxygen sensor for oxygen concentration measurement and is

designed specifically for medical equipment. WDK-09 oxygen sensor interface model is 5520257-2 The

sensor adopts molded body design, provides fast response and has long life. Domestic substitution can

be realized. The sensor provides customers with superior quality while reducing costs.

The pin definitions of WDK-09 oxygen sensor and WDK-06 oxygen sensor are different.

Application Scenarios

Using WDK-09 requires no external power supply. Sensors have been calibrated before leaving the factory.

To avoid the influence of temperature, temperature compensation function is applied in sensors. WDK-09 can be

used as the sensing component in oxygen analyzer, such as control component in oxygen generator, medical

ventilator, anesthesia equipment, incubator.

MEASUREMENT1

Operating principle Partial pressure electrochemical

Output voltage 9 ~ 13 mV (in ambient air)

Measurement range 0 ~ 100%

Response time (T90) < 15 s

Linearity Linear 0% to 100% O2

ELECTRICAL

Temperature compensation < 2% O2 equivalent (0 ~ 40 °C)

External load resistor ≥ 10 kΩ

Connector P/N 5520257-2

MECHANICAL

Housing material White ABS

Weight 40 g (nominal)

ENVIRONMENTAL

Operating temperature range 0 ~ 50 °C

Operating pressure range 0.5 ~ 2.0 bar

Operating humidity range 0 ~ 99% RH (non-condensing)

OTHER INDICATORS

Long-term output drift in 100% O22

(voltage loss/year) < 5%

Expected operating life 1.5 x 106 % O2 hours (20°C)3

0.8 x 106 % O2 hours (40°C)

Shelf life 12 months from date of dispatch
