Product Description:

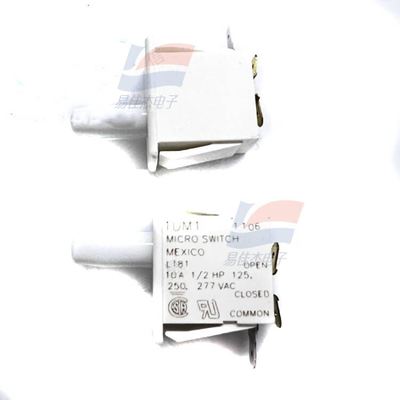

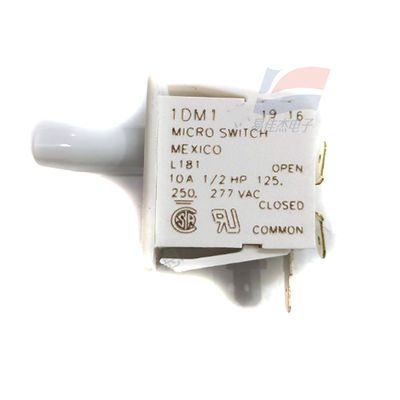

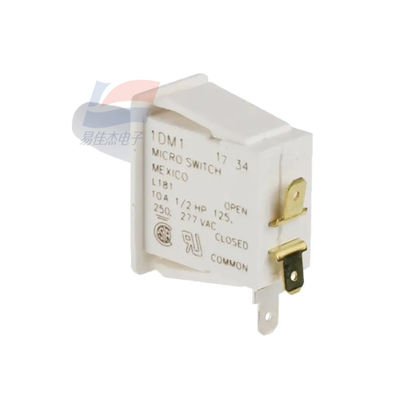

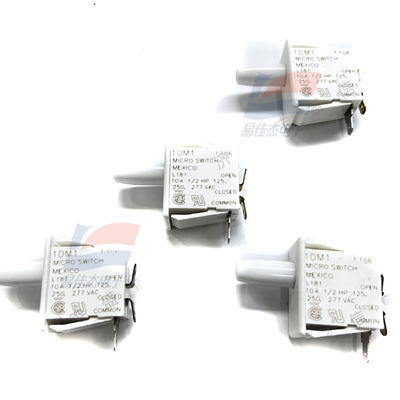

YJJ 1DM1 Microswitch Basic/Fast-acting Switch 10A 277VAC Piston Single-pole Double-throw
Features:
Parameters of Honeywell 1DM1 quick-action switch are as follows:
Basic parameters
Rated current: 10 A
Rated voltage: 277 VAC
Operating force: 4.2 N
Actuator type: Plunger (push rod type)
Contact and Terminal Connection
Contact Type: SPDT (Single-Pole Double-Throw)
Switch Function: ON - (OFF), OFF - (ON)
Physical Characteristics
Installation Style: Chassis Mount (Rack Installation)
Dimensions: Non-standard size (Specific dimensions should be referred to the data sheet)
Environmental adaptability
Operating temperature range: -37 ℃ to +82 ℃
Protection level: Non-lit type
Other Notes
Weight: Approximately 12.500 g
Delivery Timeframe: Approximately 7-10 days (subject to actual inventory and order quantity) REACH - SVHC:
Type: Micro Switch
Contact type: SPDT
Switch function: ON - (OFF), OFF - (ON)
Actuator: Plunger
Current rating: 10 A
AC voltage rating: 125 VAC, 250 VAC, 277 VAC
Working force: 4.17 N
Termination type: Quick Connect
Installation style: Chassis Mount
Actuator style: Plunger
Contact material: Silver
Lighting: Non-Illuminated
Maximum operating temperature: + 82 °C
Minimum operating temperature: - 37 °C
Product type: Snap Action Switches 50
Subcategory: Switches
Trademark name: Microswitch
Unit weight: 12.500 g
Specifications:
| Installation style |
Chassis Mount |
| Actuator style |
Plunger |
| Contact material |
Silver |
| Lighting |
Non-Illuminated |
