7E4-NH3-10 4 059-3500-200 NH3 Gas Sensor Electrode Ultra High Resolutions Air Quality Monitoring

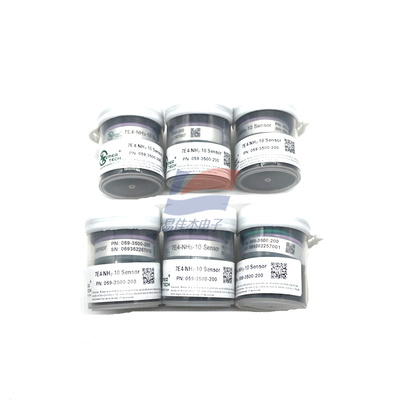

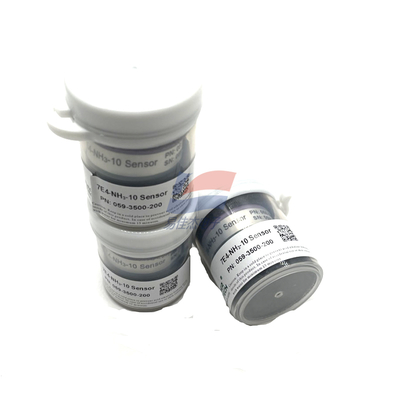

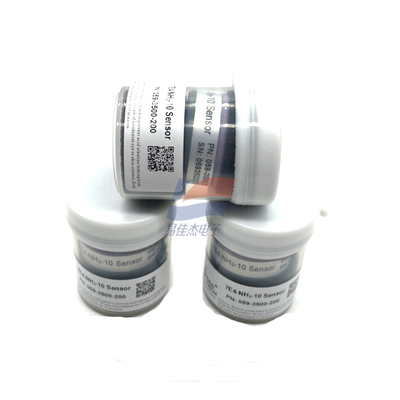

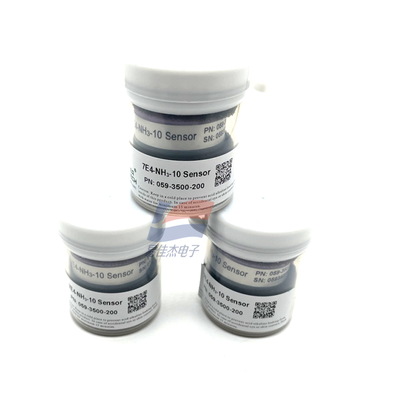

Gambar besar : 7E4-NH3-10 4 059-3500-200 NH3 Gas Sensor Electrode Ultra High Resolutions Air Quality Monitoring

Detail produk:

Tempat asal:	CINA
Nama merek:	YJJ
Nomor model:	7E4-NH3-10

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	dapat dinegosiasikan
Kemasan rincian:	Kotak standar
Waktu pengiriman:	3-5 Workingdays
Syarat-syarat pembayaran:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan:	3000pcs/bulan

Kontak

7E4-NH3-10 4 059-3500-200 NH3 Gas Sensor Electrode Ultra High Resolutions Air Quality Monitoring

Deskripsi

Kisaran Nominal:

0 ~ 10 ppm

Kelebihan muatan maksimum:

50 ppm

Sensitivitas (20 ° C):

0,20 ± 0,05 μA/ppm

Waktu respons (T90):

≤ 120 -an

Menyoroti:

NH3 gas sensor electrode

ultra high resolution gas sensor

air quality monitoring NH3 sensor

7E4-NH3-10 4 059-3500-200 NH3 Gas Sensor Electrode Ultra High Resolutions Air Quality Monitoring

This 4-electrode sensor is designed for air quality monitoring to mea- sure the low-concentration NH3 gas with ultra-high resolutions. The de- sign optimizes the sensor sensitivity, accuracy and long-term stability and enables the sensorto detect NH3 variations at parts per billion (ppb) levels.

Performance Characteristics

Zero Signal (20℃)	< ±0.1 μA
Baseline Shift	(-30℃ ~ 50℃) < 1 ppm
Resolution	15 ppb
Linearity	Linear up to 10 ppm
Bias Voltage	0 mV

Environmental

Temperature Range	-30℃ ~ 50℃
Pressure Range	1 ± 0.1 atm
Humidity Range	15% ~ 90%RH non-condensing

Life Time

Long Time Output Drift	< 10% signal/year
Recommended Storage Temp	10℃ ~ 30℃
Expected Operating Life	2 years in clean air
Storage Life	6 months in original packaging
Warranty	24 months

7E4-NH3-10 4 059-3500-200 NH3 Gas Sensor Electrode Ultra High Resolutions Air Quality Monitoring 0
