7E4-NO2-5 057-0400-200 Nitrogen Dioxide Gas Sensors 4 Electrode Air Quality Monitoring

7E4-NO2-5 057-0400-200 Nitrogen Dioxide Gas Sensors 4 Electrode Air Quality Monitoring
7E4-NO2-5 057-0400-200 Nitrogen Dioxide Gas Sensors 4 Electrode Air Quality Monitoring 7E4-NO2-5 057-0400-200 Nitrogen Dioxide Gas Sensors 4 Electrode Air Quality Monitoring 7E4-NO2-5 057-0400-200 Nitrogen Dioxide Gas Sensors 4 Electrode Air Quality Monitoring

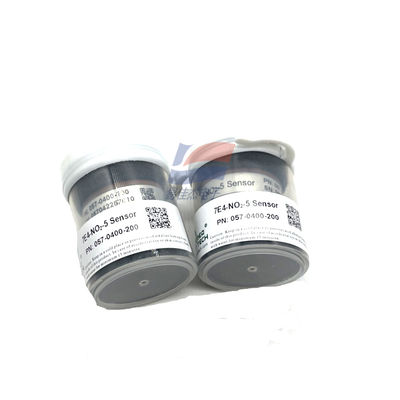

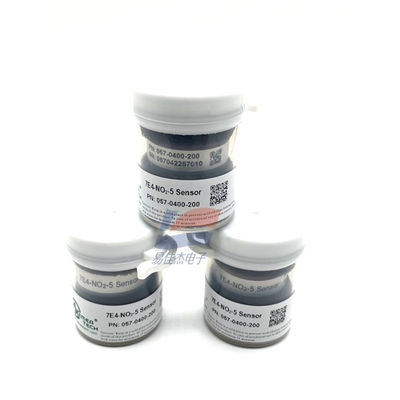

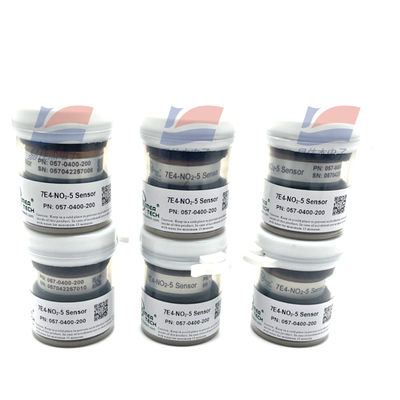

Gambar besar :  7E4-NO2-5 057-0400-200 Nitrogen Dioxide Gas Sensors 4 Electrode Air Quality Monitoring

Detail produk:
Tempat asal: CINA
Nama merek: YJJ
Nomor model: 7e4-no2-5
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: dapat dinegosiasikan
Kemasan rincian: Kotak standar
Waktu pengiriman: 3-5 Workingdays
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan: 3000pcs/bulan
Kontak

7E4-NO2-5 057-0400-200 Nitrogen Dioxide Gas Sensors 4 Electrode Air Quality Monitoring

Deskripsi
Kisaran Nominal: 0 ~ 5 ppm Kelebihan muatan maksimum: 20 ppm
Sensitivitas (20℃): -0,50 ± 0,15 μA/ppm Waktu respons (T90): ≤ 60-an
Menyoroti:

Nitrogen Dioxide gas sensor 4 electrode

,

Air quality monitoring gas sensor

,

NO2 gas sensor with warranty

7E4-NO2-5 057-0400-200 Nitrogen Dioxide Gas Sensors 4 Electrode Air Quality Monitoring



This 4-electrode sensor is designed for air quality monitoring to measure the low-concentration NO2 gas with ultra-high resolutions. The design optimizes the sensor sensitivity, accuracy and long-term stability and enables the sensor to detect NO2 variations at parts per billion (ppb) levels.



Performance Characteristics

Zero Signal (20℃)
 < ±70 nA
Baseline Shift (-40℃ ~ 50℃) < 50 ppb (After compensation)
Resolution 10 ppb
Linearity Linear up to 5 ppm
Bias Voltage 0 mV



Environmental

Temperature Range
 -40℃ ~ 50℃
Pressure Range 1 ± 0.1 atm
Humidity Range 15% ~ 90%RH non-condensing



Life Time

Long Time Output Drift
 < 10% signal/year
Recommended Storage Temp 10℃ ~ 30℃
Expected Operating Life 3 years in clean air
Storage Life 6 months in original packaging
Warranty 24 months



7E4-NO2-5 057-0400-200 Nitrogen Dioxide Gas Sensors 4 Electrode Air Quality Monitoring 0
