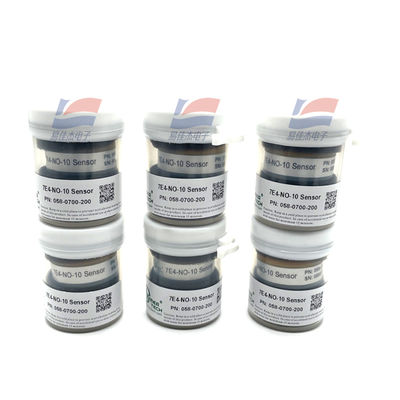

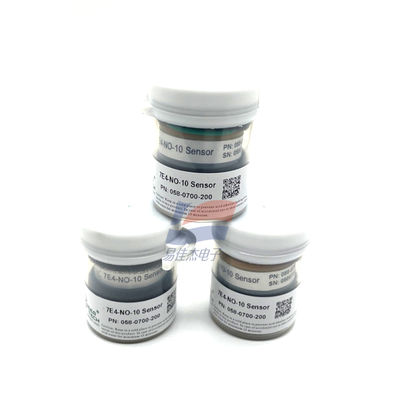

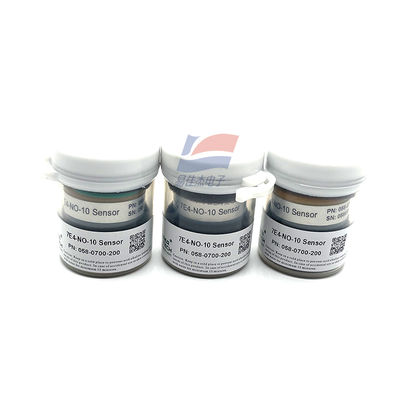

7E4-NO-10 Nitrogen Monoxide 4 Electrode 0 To 10 ppm For Air Quality

7E4-NO-10 Nitrogen Monoxide 4 Electrode 0 To 10 ppm For Air Quality
7E4-NO-10 Nitrogen Monoxide 4 Electrode 0 To 10 ppm For Air Quality 7E4-NO-10 Nitrogen Monoxide 4 Electrode 0 To 10 ppm For Air Quality 7E4-NO-10 Nitrogen Monoxide 4 Electrode 0 To 10 ppm For Air Quality

Gambar besar :  7E4-NO-10 Nitrogen Monoxide 4 Electrode 0 To 10 ppm For Air Quality

Detail produk:
Tempat asal: CINA
Nama merek: YJJ
Nomor model: 7e4-no-10
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: dapat dinegosiasikan
Kemasan rincian: Kotak standar
Waktu pengiriman: 3-5 Workingdays
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan: 3000pcs/bulan
Kontak

7E4-NO-10 Nitrogen Monoxide 4 Electrode 0 To 10 ppm For Air Quality

Deskripsi
Kisaran Nominal: 0 ~ 10 ppm Kelebihan muatan maksimum: 20 ppm
Sensitivitas (20℃): 00,40 ± 0,20 μA/ppm Waktu respons (T90): ≤45 detik
Menyoroti:

Nitrogen Monoxide gas sensor 0-10 ppm

,

4 electrode NO air quality sensor

,

7E4-NO-10 nitrogen monoxide detector

7E4-NO-10 Nitrogen Monoxide 4 Electrode 0 To 10 ppm For Air Quality



This 4-electrode sensor is designed for air quality monitoring to measure the low-concentration NO gas with ultra-high resolutions. The design optimizes the sensor sensitivity, accuracy and long-term stability and enables the sensor to detect NO variations at parts per billion (ppb) levels.



Performance Characteristics

Zero Signal (20℃)
< ±500 nA
Baseline Shift (-20℃ ~ 50℃) < 100 ppb (After compensation)
Resolution 15 ppb
Linearity Linear up to 10 ppm
Bias Voltage +300 mV



Environmental

Temperature Range
-20℃ ~ 50℃
Pressure Range 1 ± 0.1 atm
Humidity Range 15% ~ 90%RH non-condensing



Life Time

Long Time Output Drift
< 10% signal/year
Recommended Storage Temp 10℃ ~ 30℃
Expected Operating Life 3 years in clean air
Storage Life 6 months in original packaging
Warranty 24 months



7E4-NO-10 Nitrogen Monoxide 4 Electrode 0 To 10 ppm For Air Quality 0
