MPX2200DP Silicon Piezoresistive Pressure Sensor For Robotics Level Indicators Pressure Switching

MPX2200DP Silicon Piezoresistive Pressure Sensor For Robotics Level Indicators Pressure Switching
MPX2200DP Silicon Piezoresistive Pressure Sensor For Robotics Level Indicators Pressure Switching

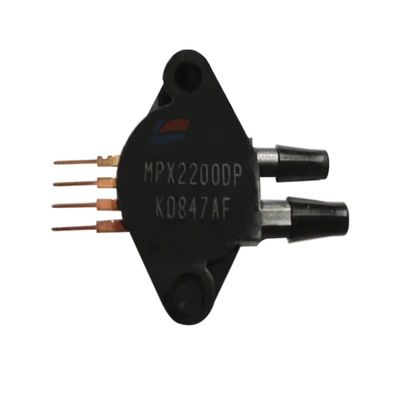

Gambar besar :  MPX2200DP Silicon Piezoresistive Pressure Sensor For Robotics Level Indicators Pressure Switching

Detail produk:
Tempat asal: Amerika Serikat
Nomor model: MPX2200DP
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 pcs
Harga: dapat dinegosiasikan
Kemasan rincian: Kemasan Standar
Waktu pengiriman: 5-8 hari kerja
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan: 5000pcs
Kontak

MPX2200DP Silicon Piezoresistive Pressure Sensor For Robotics Level Indicators Pressure Switching

Deskripsi
Rentang tekanan operasi: 0 kPa hingga 200 kPa Kepekaan: 0,2 mV/kPa
Arus suplai: 6 mA Kisaran suhu operasi: - 40 ° C hingga +125 ° C
Menyoroti:

MPX2200DP pressure sensor for robotics

,

silicon piezoresistive pressure sensor

,

electronic pressure sensor for level indicators



              MPX2200DP Silicon Piezoresistive Pressure Sensor For Robotics Level Indicators Pressure Switching





Features:

  • Temperature - compensated over the range of 0 °C to +85 °C.
  • Offers high - accuracy and linear voltage output.
  • Available in absolute, differential, and gauge configurations.
  • Has easy - to - use chip carrier package options.

Applications:

  • Pump/motor controllers.
  • Robotics.
  • Level indicators.
  • Medical diagnostics.
  • Pressure switching.
  • Barometers.
  • Altimeters.
Pressure Type Differential
Operating Pressure Range 0 kPa to 200 kPa
Maximum Overload Pressure 800 kPa
Sensitivity 0.2 mV/kPa
Output Wheatstone bridge, typical full - scale output is 40 mV
Supply Voltage Minimum 10 V, maximum 16 V
Supply Current 6 mA (typical)



MPX2200DP Silicon Piezoresistive Pressure Sensor For Robotics Level Indicators Pressure Switching 0

Label:

Sensor Tekanan Berisi Minyak,

Sensor Tekanan Piezoresistif,

Sensor Tekanan Diferensial Piezoresistif
