ASDXRRX005ND2A5 Board Mount Pressure Sensors Different Type Silicon Low Pressure

ASDXRRX005ND2A5 Board Mount Pressure Sensors Different Type Silicon Low Pressure
ASDXRRX005ND2A5 Board Mount Pressure Sensors Different Type Silicon Low Pressure ASDXRRX005ND2A5 Board Mount Pressure Sensors Different Type Silicon Low Pressure ASDXRRX005ND2A5 Board Mount Pressure Sensors Different Type Silicon Low Pressure ASDXRRX005ND2A5 Board Mount Pressure Sensors Different Type Silicon Low Pressure ASDXRRX005ND2A5 Board Mount Pressure Sensors Different Type Silicon Low Pressure ASDXRRX005ND2A5 Board Mount Pressure Sensors Different Type Silicon Low Pressure

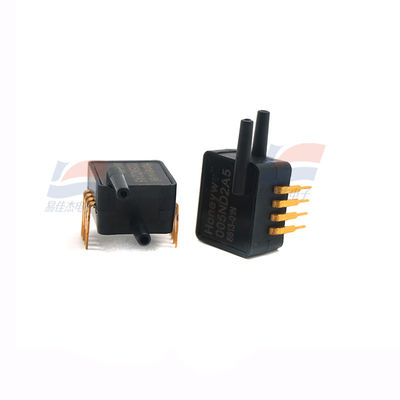

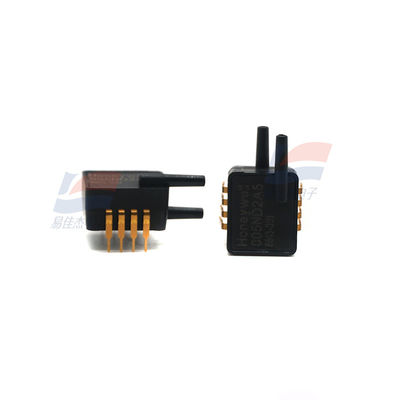

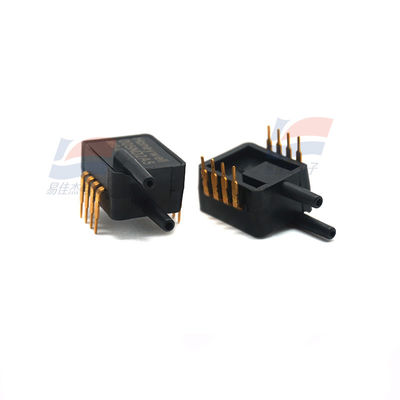

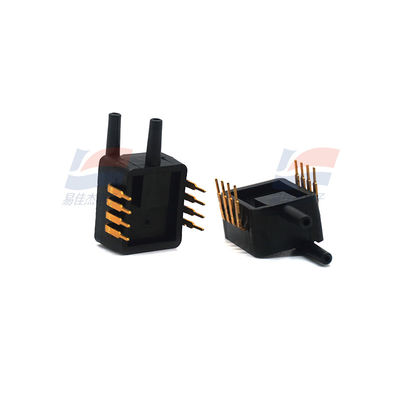

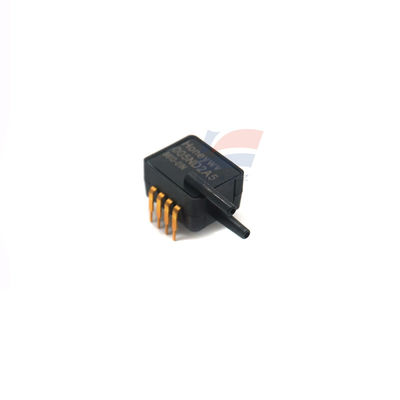

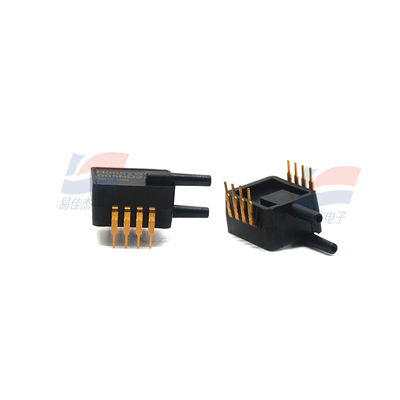

Gambar besar :  ASDXRRX005ND2A5 Board Mount Pressure Sensors Different Type Silicon Low Pressure

Detail produk:
Tempat asal: Amerika Serikat
Nama merek: YJJ
Nomor model: Asdxrrx005nd2a5
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: dapat dinegosiasikan
Kemasan rincian: Kotak standar
Waktu pengiriman: 3-5 Workingdays
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan: 3000 pcs/bulan
Kontak

ASDXRRX005ND2A5 Board Mount Pressure Sensors Different Type Silicon Low Pressure

Deskripsi
Jenis tekanan: Diferensial Tekanan operasi: 0,18 psi
Ketepatan: 2% Tipe output: Digital
Menyoroti:

board mount pressure sensor

,

silicon low pressure sensor

,

electronic pressure sensor with warranty

ASDXRRX005ND2A5 Board Mount Pressure Sensors Different Type Silicon Low Pressure



FEATURES
* Output options: I
2C- or SPI-compatible 12-bit digital
* Precision ASIC conditioning and temperature
compensated over 0 °C to 85 °C [32 °F to 185 °F] temperature range
* Low operating voltage
* Absolute, differential and gage types
* Pressure ranges from 10 inches H2O to 100 psi
* Standard calibrations in inches H2O, cm H20, psi, mbar,bar, kPa
* Total error band of ±2.0% of full scale span maximum
* RoHS compliant



Specification:

Mounting Style
 Through Hole
Interface Type I2C
Operating Supply Voltage 5 V
Port Type Dual Radial Barbless
Resolution 14 bit
Package / Case DIP-8
Minimum Operating Temperature - 20℃
Maximum Operating Temperature + 105℃
Operating Supply Current 3.5 mA
Port Size 2.31 mm
Supply Voltage - Max 5.25 V
Supply Voltage - Min 4.75 V



ASDXRRX005ND2A5 Board Mount Pressure Sensors Different Type Silicon Low Pressure 0





Label:

Sensor Tekanan Berisi Minyak,

Sensor Tekanan Piezoresistif,

Sensor Tekanan Diferensial Piezoresistif
