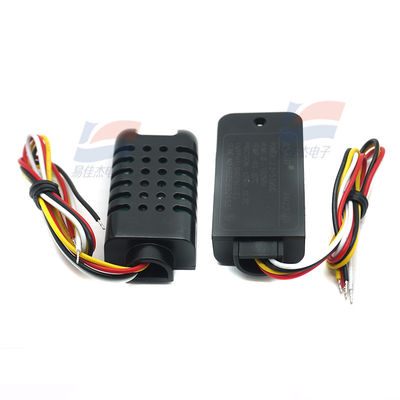

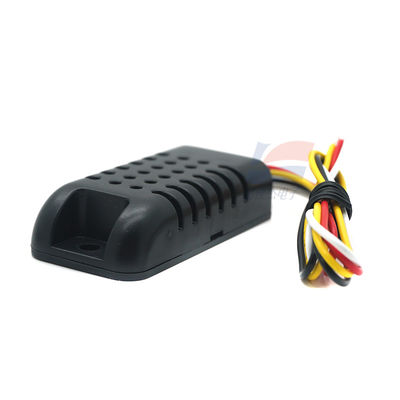

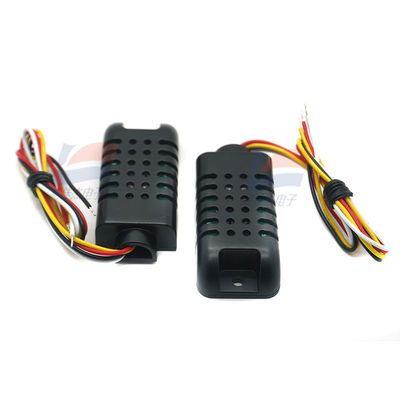

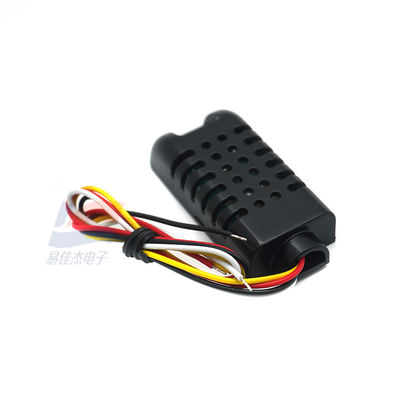

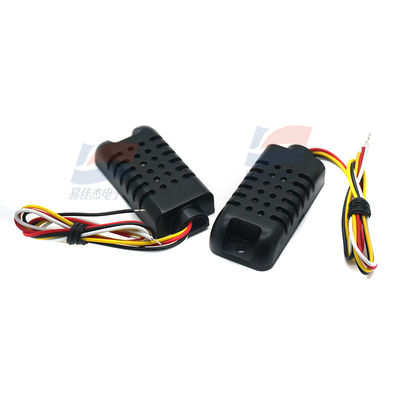

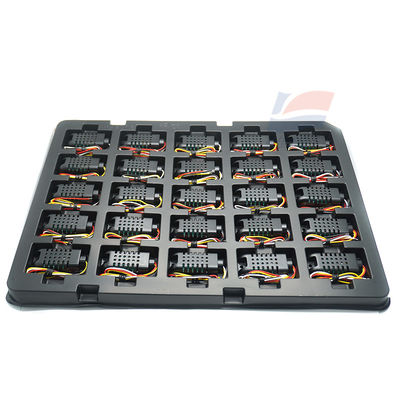

AM2301B Humidity Temperature Sensor For HVAC Systems Dehumidifiers Testing And Measuring Equipment

AM2301B Humidity Temperature Sensor For HVAC Systems Dehumidifiers Testing And Measuring Equipment
AM2301B Humidity Temperature Sensor For HVAC Systems Dehumidifiers Testing And Measuring Equipment AM2301B Humidity Temperature Sensor For HVAC Systems Dehumidifiers Testing And Measuring Equipment AM2301B Humidity Temperature Sensor For HVAC Systems Dehumidifiers Testing And Measuring Equipment AM2301B Humidity Temperature Sensor For HVAC Systems Dehumidifiers Testing And Measuring Equipment AM2301B Humidity Temperature Sensor For HVAC Systems Dehumidifiers Testing And Measuring Equipment AM2301B Humidity Temperature Sensor For HVAC Systems Dehumidifiers Testing And Measuring Equipment

Gambar besar :  AM2301B Humidity Temperature Sensor For HVAC Systems Dehumidifiers Testing And Measuring Equipment

Detail produk:
Tempat asal: Cn
Nomor model: AM2301B
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: dapat dinegosiasikan
Kemasan rincian: Kotak kertas
Waktu pengiriman: 3-5 hari kerja
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan: 5000pcs
Kontak

AM2301B Humidity Temperature Sensor For HVAC Systems Dehumidifiers Testing And Measuring Equipment

Deskripsi
Rentang pengukuran kelembaban: 0 ~ 100% RH Akurasi pengukuran kelembaban: ±2% RH (pada 25°C, 20~80% RH)
Resolusi Kelembaban: 0,024% RH Kisaran pengukuran suhu: -40 ~ +80°C
Resolusi Suhu: 0,01°C Tegangan suplai: DC 2.0 ~ 5.5V
Menyoroti:

HVAC humidity temperature sensor

,

dehumidifier testing sensor

,

measuring equipment temperature sensor



                     AM2301B Humidity Temperature Sensor For HVAC Systems Dehumidifiers Testing And Measuring Equipment



General Description:

The AM2301B is a digital humidity and temperature composite sensor with calibrated digital signal output. It combines advanced sensing technology with digital processing to provide high reliability and excellent long-term stability in various environmental conditions.



Features:

  • Fully calibrated during production
  • High measurement accuracy
  • Wide operating voltage range
  • Low power consumption design
  • Digital output via I2C interface
  • Excellent long-term stability
  • Fast response time
  • Strong anti-interference capability
  • Small size for easy integration

Applications:

  • HVAC systems
  • Dehumidifiers
  • Testing and measuring equipment
  • Consumer electronics
  • Automotive systems
  • Automatic control systems
  • Data loggers
  • Weather stations
  • Home appliances
  • Humidity control systems
  • Medical equipment
  • Any environment requiring temperature and humidity monitoring
Humidity Measurement Range 0 ~ 100% RH
Humidity Measurement Accuracy ±2% RH (at 25°C, 20~80% RH)
Humidity Resolution 0.024% RH
Temperature Measurement Range -40 ~ +80°C
Temperature Measurement Accuracy ±0.3°C (at 25°C)
Temperature Resolution 0.01°C
Output Signal I²C digital signal
Supply Voltage DC 2.0 ~ 5.5V
I²C Address 0x38 (fixed, non-changeable)
Operating Current < 200μA (active mode)
Standby Current < 2μA
Response Time < 5s (for humidity)
Sensing Element Polymer capacitor
Operating Temperature Range -40 ~ +80°C
Storage Temperature Range -40 ~ +80°C



AM2301B Humidity Temperature Sensor For HVAC Systems Dehumidifiers Testing And Measuring Equipment 0
