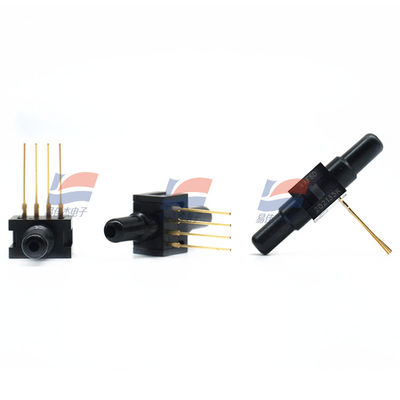

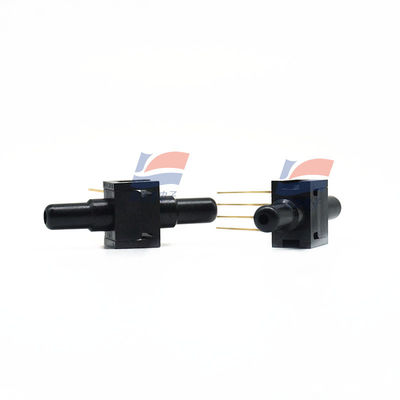

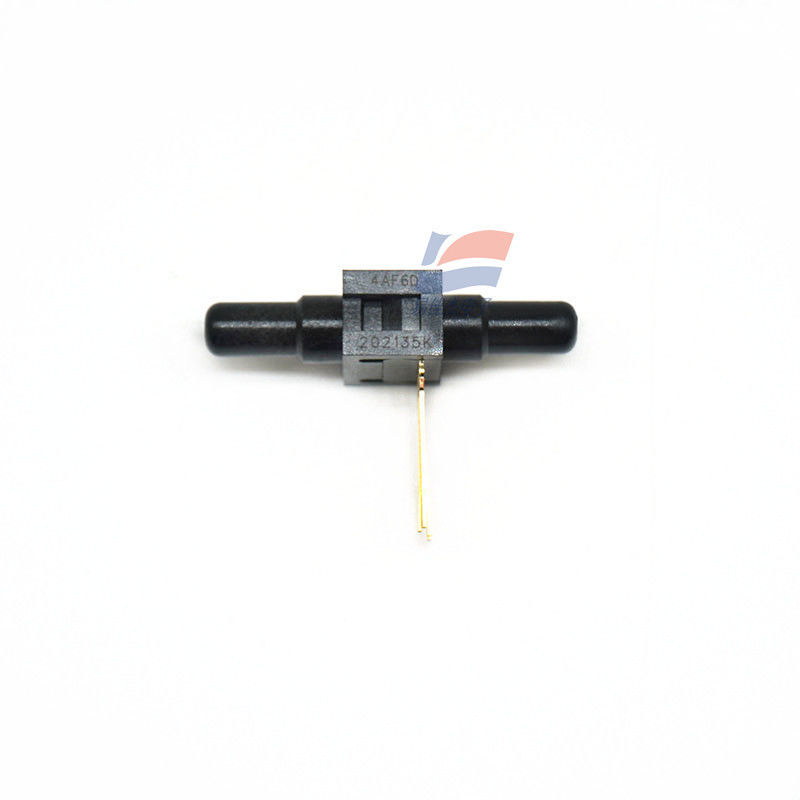

24PCAFA6D Miniature Pressure Sensor For Sensing & Instrumentation Medical Industry

24PCAFA6D Miniature Pressure Sensor For Sensing & Instrumentation Medical Industry
24PCAFA6D Miniature Pressure Sensor For Sensing & Instrumentation Medical Industry 24PCAFA6D Miniature Pressure Sensor For Sensing & Instrumentation Medical Industry 24PCAFA6D Miniature Pressure Sensor For Sensing & Instrumentation Medical Industry 24PCAFA6D Miniature Pressure Sensor For Sensing & Instrumentation Medical Industry 24PCAFA6D Miniature Pressure Sensor For Sensing & Instrumentation Medical Industry

Gambar besar :  24PCAFA6D Miniature Pressure Sensor For Sensing & Instrumentation Medical Industry

Detail produk:
Tempat asal: Amerika Serikat
Nomor model: 24PCAFA6D
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 pcs
Harga: dapat dinegosiasikan

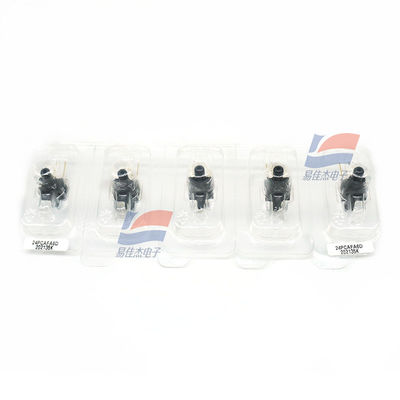

Kemasan rincian: Kemasan Standar
Waktu pengiriman: 5-8 hari kerja
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan: 5000pcs
Kontak

24PCAFA6D Miniature Pressure Sensor For Sensing & Instrumentation Medical Industry

Deskripsi
Tekanan operasi maks: 1psi Peringkat tegangan: 10 v
Arus suplai: 2 ma Ketepatan: ± 0,25%
Waktu respons: 1 ms Keluaran analog: 30 - 60 mV
Menyoroti:

miniature pressure sensor for medical

,

electronic pressure sensor for instrumentation

,

24PCAFA6D pressure sensor with warranty



                        24PCAFA6D Miniature Pressure Sensor For Sensing & Instrumentation Medical Industry





Features:

  • It adopts a Wheatstone - bridge construction and silicon piezoresistive technology, with a ratiometric output, providing proven application flexibility, design simplicity, and ease of manufacture.
  • It has alignment pins for position accuracy.
  • The package size is small, less than one - half the size of the 26PC series, and it has a compact surface - mount profile.
  • It has the capability of true wet / wet differential sensing.

Applications:

  • Sensing & instrumentation
  • Medical industry
  • Industrial field
  • Consumer electronics
  • Signal processing
Pressure Measurement Type Differential
Maximum Operating Pressure 1 psi
Output Type Voltage (Analogue)
Analogue Output Range 30 - 60 mV
Supply Voltage Rating 10 V
Supply Current 2 mA
Accuracy ±0.25%
Response Time 1 ms
Operating Temperature Range -40°C to 85°C
Compatible Measured Media Nitrogen gas, oxygen, water
Package Size Small (3.18 mm / 0.125 inch diameter pick-up feature)
Maximum Peak Reflow Temperature 260°C (500°F)
Mounting Type PCB through-hole (90°)



24PCAFA6D Miniature Pressure Sensor For Sensing & Instrumentation Medical Industry 0



Label:

Sensor Tekanan Berisi Minyak,

Sensor Tekanan Piezoresistif,

Sensor Tekanan Diferensial Piezoresistif
