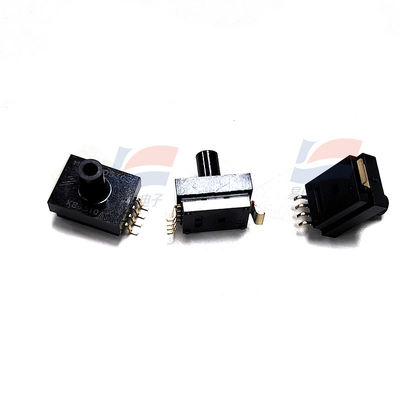

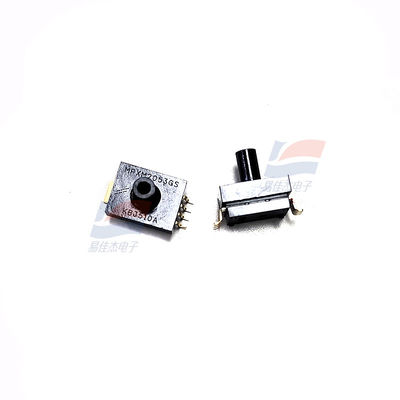

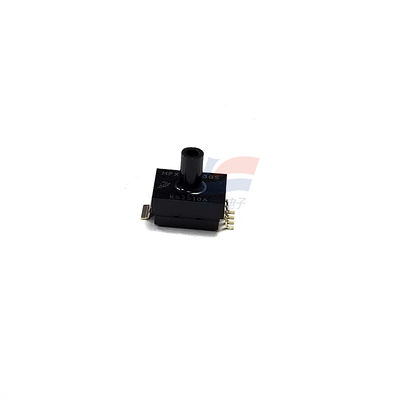

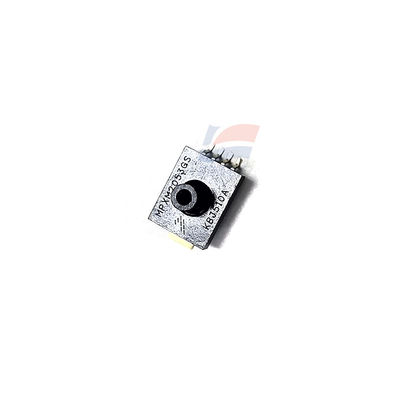

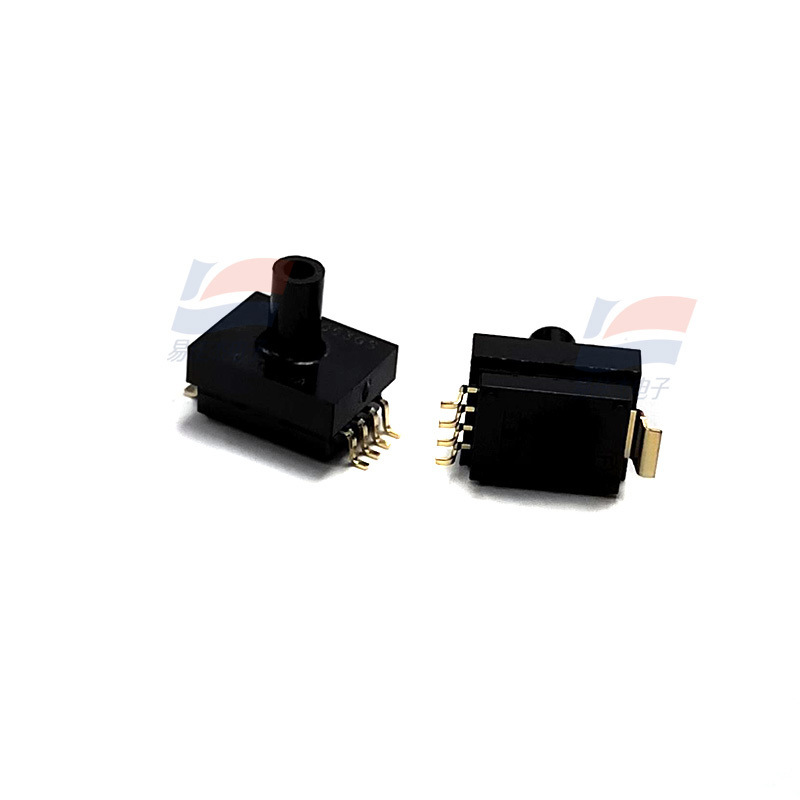

MPXM2053GS Board Mount Pressure Sensors Silicon 50 kPa SMD Style

MPXM2053GS Board Mount Pressure Sensors Silicon 50 kPa SMD Style
MPXM2053GS Board Mount Pressure Sensors Silicon 50 kPa SMD Style MPXM2053GS Board Mount Pressure Sensors Silicon 50 kPa SMD Style MPXM2053GS Board Mount Pressure Sensors Silicon 50 kPa SMD Style MPXM2053GS Board Mount Pressure Sensors Silicon 50 kPa SMD Style MPXM2053GS Board Mount Pressure Sensors Silicon 50 kPa SMD Style MPXM2053GS Board Mount Pressure Sensors Silicon 50 kPa SMD Style

Gambar besar :  MPXM2053GS Board Mount Pressure Sensors Silicon 50 kPa SMD Style

Detail produk:
Tempat asal: Amerika Serikat
Nama merek: YJJ
Nomor model: MPXM2053GS
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: dapat dinegosiasikan
Kemasan rincian: Paket standar
Waktu pengiriman: 3-5 Workingdays
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan: 10000pcs/bulan
Kontak

MPXM2053GS Board Mount Pressure Sensors Silicon 50 kPa SMD Style

Deskripsi
Jenis tekanan: Mengukur Tekanan operasi: 50 kPa
Ketepatan: 0,5% Tipe output: Analog
Menyoroti:

MPXM2053GS pressure sensor SMD

,

silicon pressure sensor 50 kPa

,

board mount pressure sensor SMD

MPXM2053GS Board Mount Pressure Sensors Silicon 50 kPa SMD Style



The MPX2053 series devices are silicon piezoresistive pressure sensors that provide a highly accurate and linear voltage output directly proportional to the applied pressure. The sensor is a single monolithic silicon diaphragm with the strain gauge and a thin-film
resistor network integrated on-chip. The chip is laser trimmed for precise span and offset calibration and temperature compensation.



Features and Benefits
• Ratiometric to Supply Voltage
• Differential and Gauge Options
• Temperature Compensated over 0 °C to 85 °C
• Easy-to-Use Chip Carrier Package Options



Applications
• Level Indicators
• Medical Diagnostics
• Robotics
• Pressure Switching
• Pump/Motor Controllers
• Non-Invasive Blood Pressure Measurement



Specification:

Mounting Style
 SMD/SMT
Operating Supply Voltage 10 V
Port Type Single Axial Barbless
Package / Case M-PAK-5
Minimum Operating Temperature - 40℃
Maximum Operating Temperature + 125℃
Operating Supply Current 6 mA
Port Size 2.97 mm
Supply Voltage - Max 16 V
Supply Voltage - Min 1 V



MPXM2053GS Board Mount Pressure Sensors Silicon 50 kPa SMD Style 0

Label:

Sensor Tekanan Berisi Minyak,

Sensor Tekanan Piezoresistif,

Sensor Tekanan Diferensial Piezoresistif
