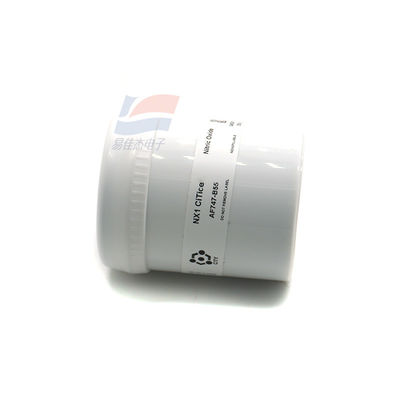

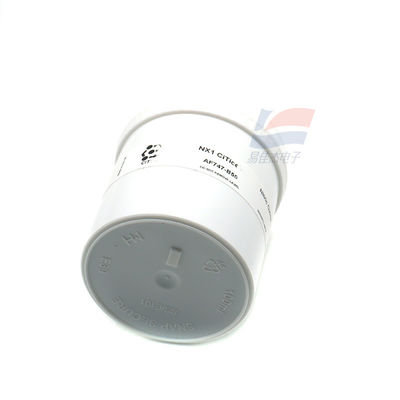

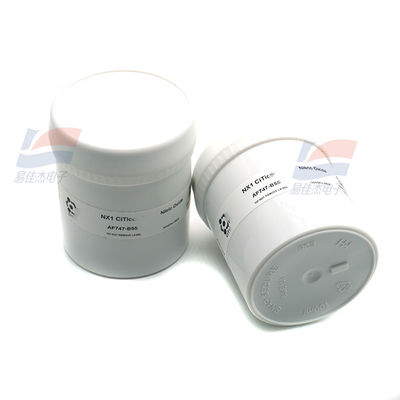

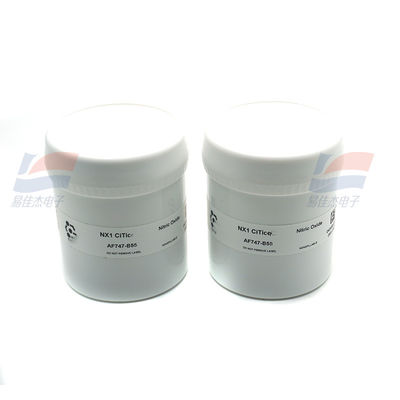

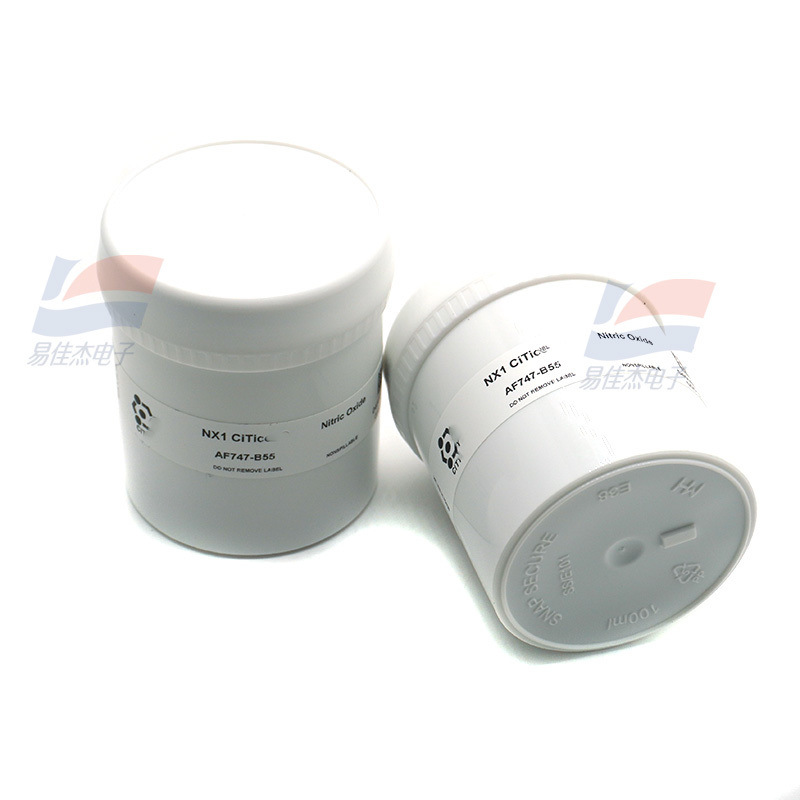

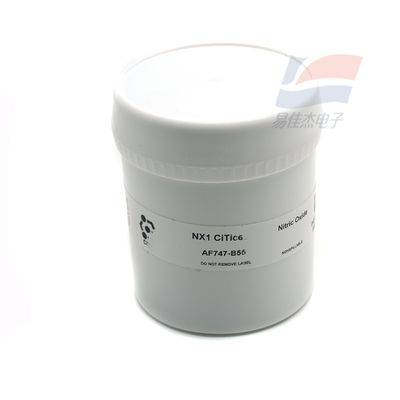

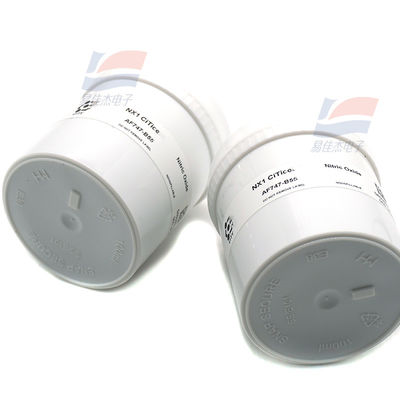

NX1 AF747-B05 Nitric Oxide Gas Sensor 3 Electrode Electrochemical ABS Materials

NX1 AF747-B05 Nitric Oxide Gas Sensor 3 Electrode Electrochemical ABS Materials
NX1 AF747-B05 Nitric Oxide Gas Sensor 3 Electrode Electrochemical ABS Materials NX1 AF747-B05 Nitric Oxide Gas Sensor 3 Electrode Electrochemical ABS Materials NX1 AF747-B05 Nitric Oxide Gas Sensor 3 Electrode Electrochemical ABS Materials NX1 AF747-B05 Nitric Oxide Gas Sensor 3 Electrode Electrochemical ABS Materials NX1 AF747-B05 Nitric Oxide Gas Sensor 3 Electrode Electrochemical ABS Materials NX1 AF747-B05 Nitric Oxide Gas Sensor 3 Electrode Electrochemical ABS Materials

Gambar besar :  NX1 AF747-B05 Nitric Oxide Gas Sensor 3 Electrode Electrochemical ABS Materials

Detail produk:
Nama merek: CITY
Nomor model: NX1 AF747-B05
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: dapat dinegosiasikan
Waktu pengiriman: 3-5 Workingdays
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan: 10000PCS/bulan
Kontak

NX1 AF747-B05 Nitric Oxide Gas Sensor 3 Electrode Electrochemical ABS Materials

Deskripsi
Menyoroti:

Nitric Oxide gas sensor electrochemical

,

ABS material gas sensor

,

3 electrode nitric oxide sensor

NX1 AF747-B05 Nitric Oxide Gas Sensor 3 Electrode Electrochemical ABS Materials



Measurement​:

Operating Principle 3-electrode electrochemical
Measurement Range 0-5,000 ppm NO
Filter To remove effect of SO, in gas stream
Sensitivity 0.05 + 0.01 μAppm
Cross Sensitivity CO <40 ppm
Response Time (T95 <8 Seconds at 20°C
Baseline Offset (clean air) 0 to +12 ppm equivalent
Zero Shift (0°c to +40°C) <30 ppm equivalent
Resolution 1 ppm


Electrical

Recommended Load Resistor  10 Ω
Bias Voltage  +300 mv


Mechanical

Weight 32 g (nominal)
Housing Material ABS
Orientationl Any



Enviromental

Operating Temperature Range  -20°C to +50°C
Recommended Storage Temp  0°C to 25°C in CTL packaging
Operating Pressure Range  800 to 1100 mBar
Pressure Coefficient  0.02% signal/mBar
Operating Humidity Range  15 to 90% RH non-condensing


NX1 AF747-B05 Nitric Oxide Gas Sensor 3 Electrode Electrochemical ABS Materials 0
