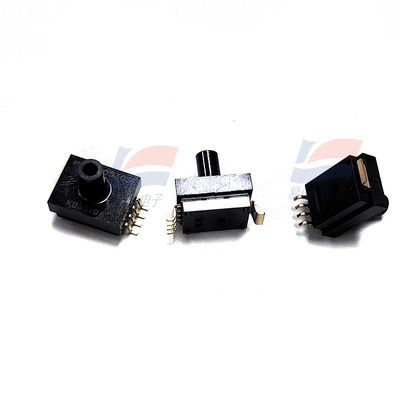

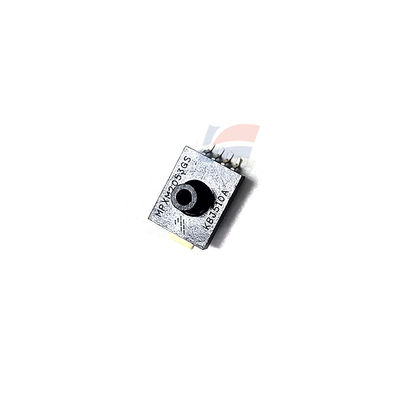

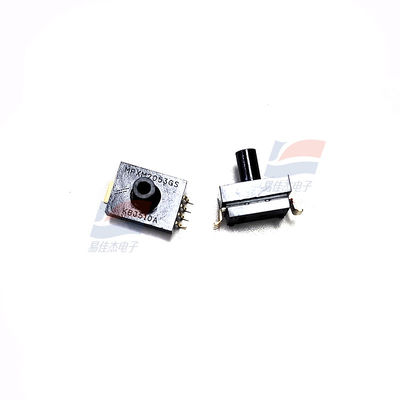

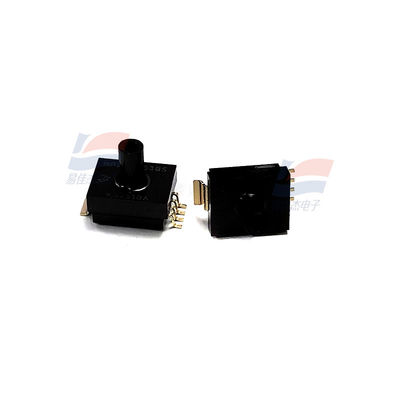

YJJ MPXM2053GS lever Interface Pressure Sensor Is Used In Medical Devices

Product Description:

YJJ MPXM2053GS lever Interface Pressure Sensor Is Used In Medical Devices

Features:

Main parameters and applications of the MPXM2053GS pressure sensor are as follows:
Parameter Description
‌Operating Temperature Range‌: 0°C to +85°C
‌Operating Voltage‌: Voltage output proportional to the supply voltage
‌Package Type‌: Optional MPAK or Mini-MPAK packaging
‌Calibration Method‌: Achieve precise calibration through laser fine-tuning, supporting temperature compensation
‌Pressure Range‌: 7psi (Specific models may support different pressure ranges; please refer to the data sheet)
Main applications:
‌Industrial control‌: Suitable for pump/motor control, robot pressure detection
‌Medical field‌: Blood pressure measurement equipment, medical diagnostic instruments
‌Environmental monitoring‌: Gas pressure control, research equipment
This sensor employs silicon strain gauge technology, featuring high precision and low linear error. It can be customized with various packages and calibration options to meet the requirements of different scenarios.

Product type: Board interface pressure sensor RoHS:

Pressure Type: Gauge

Working Pressure: 50 kPa

Accuracy: 0.5 %

Output Type: Analog

Installation Style: SMD/SMT

Working Power Supply Voltage: 10 V

Port Type: Single Axial Barbless

Package / Housing: M-PAK-5

Minimum Working Temperature: -40°C

Maximum Working Temperature: +125°C

Series: MPXx2053

Package: Tube

Working Power Supply Current: 6 mA

Port Size: 2.97 mm

Product Type: Board Mount Pressure Sensors 60

Subcategory: Sensors

Maximum power supply voltage: 16 V

Minimum power supply voltage: 1 V

Part number alias: 935309666174

Unit weight: 527.800 mg
