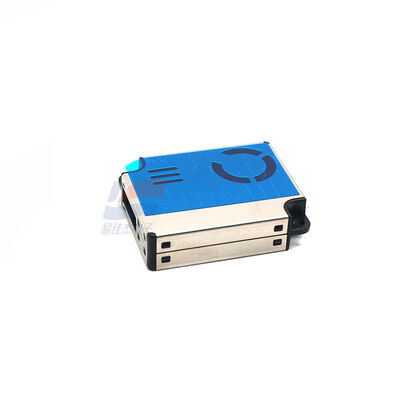

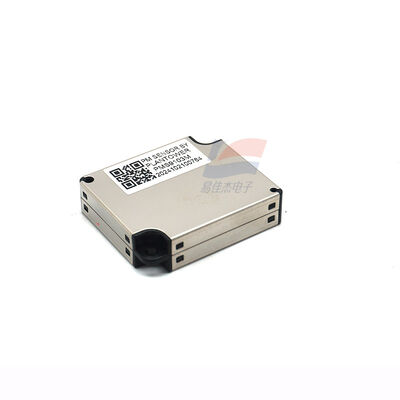

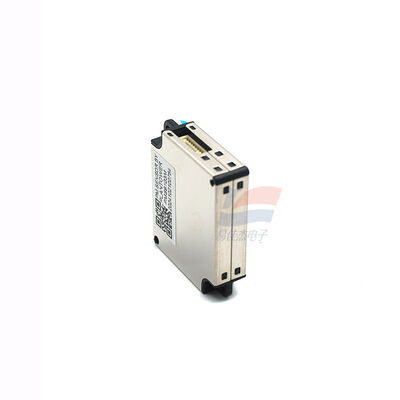

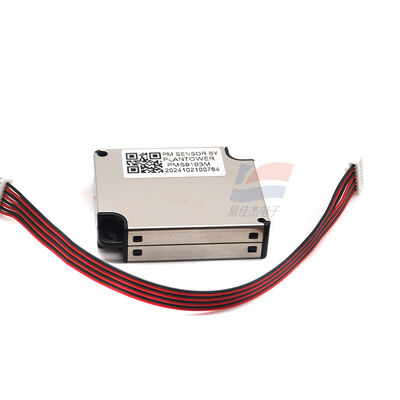

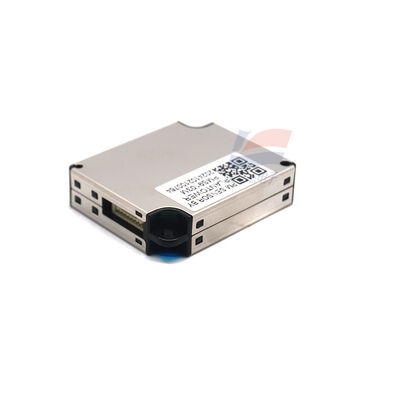

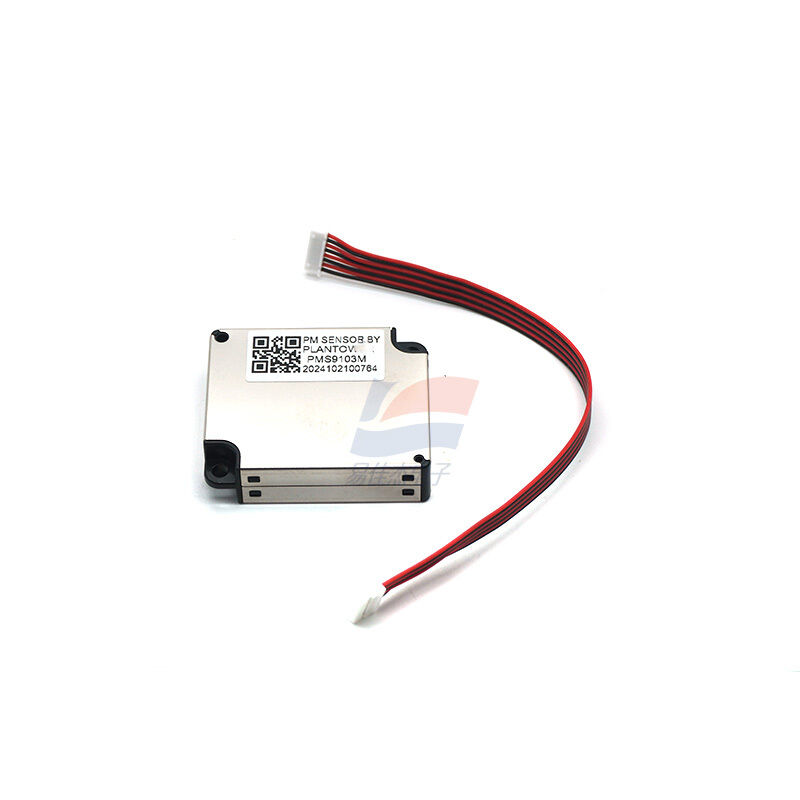

PMS9103M Dust Particle Sensor Module PM2.5 Real Time Response

PMS9103M Dust Particle Sensor Module PM2.5 Real Time Response
PMS9103M Dust Particle Sensor Module PM2.5 Real Time Response PMS9103M Dust Particle Sensor Module PM2.5 Real Time Response PMS9103M Dust Particle Sensor Module PM2.5 Real Time Response PMS9103M Dust Particle Sensor Module PM2.5 Real Time Response PMS9103M Dust Particle Sensor Module PM2.5 Real Time Response PMS9103M Dust Particle Sensor Module PM2.5 Real Time Response

Gambar besar :  PMS9103M Dust Particle Sensor Module PM2.5 Real Time Response

Detail produk:
Tempat asal: Cina
Nama merek: YJJ
Nomor model: PMS9103M
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: dapat dinegosiasikan
Kemasan rincian: Paket Standar
Waktu pengiriman: 3-5 Workingdays
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan: 10000 buah/bulan
Kontak

PMS9103M Dust Particle Sensor Module PM2.5 Real Time Response

Deskripsi
Menyoroti:

PMS9103M PM2.5 dust sensor

,

real-time PM2.5 sensor module

,

PMS9103M particle sensor with warranty

PMS9103M Dust Particle Sensor Module PM2.5 Real Time Response



Main characteristics
* Zero false alarm rate
* Real-time response
* Correct data
* Minimum distinguishable particle diameter :0.3 micrometer
* High anti-interference performance because of the new structure of six sides shielding
* Optional direction of air inlet and outlet in order to adapt the different design



Specification:

Parameter Index Unit
Particle Range of measurement 0.3~1.0; 1.0~2.5; 2.5~10 Micrometer (μm)
Particle Counting Efficiency 50%@0.3μm 98%@≥0.5μm -
Particle Effective Range

(PM2.5 standard)		 0~500 μg/m³
Particle Maximum Range

(PM2.5 standard) *		 ≥1000 μg/m³
Particle Resolution 1 μg/m³
Particle Maximum Consistency Error (PM2.5 standard data) ±10%@100~500μg/m³

±10μg/m³@0~100μg/m³		 -
Particle Standard Volume 0.1 Litre (L)
Single Response Time <1 Second (s)
Total Response Time <10 Second (s)
DC Power Supply Typ: 5.0 Min:4.5 Max:5.5 Volt (V)
Active Current ≤100 Milliampere (mA)
Standby Current ≤10

PMS9103M Dust Particle Sensor Module PM2.5 Real Time Response 0





Label:

PMS7003M,

Sensor Konsentrasi Partikel Digital,

PMS5003
