4CO-AF 114-010-120 Carbon Monoxide Gas Sensor Electrochemical Three Electrode System

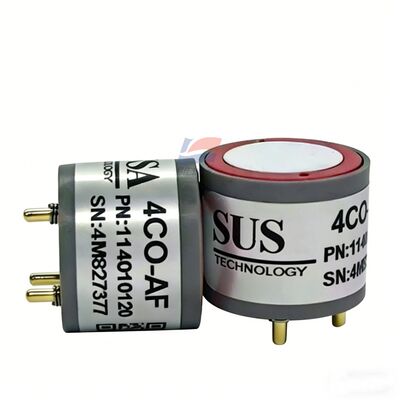

Gambar besar : 4CO-AF 114-010-120 Carbon Monoxide Gas Sensor Electrochemical Three Electrode System

Detail produk:

Tempat asal:	Cina
Nama merek:	SUSA
Nomor model:	4CO-AF

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	dapat dinegosiasikan
Kemasan rincian:	PAKET STANDAR
Waktu pengiriman:	3-5 hari kerja
Syarat-syarat pembayaran:	L/C, D/A, D/P, T/T, Western Union
Menyediakan kemampuan:	10000 Buah/Bulan

Kontak

4CO-AF 114-010-120 Carbon Monoxide Gas Sensor Electrochemical Three Electrode System

Deskripsi

Prinsip Operasi:

Elektrokimia (Tiga Elektroda)

Rentang Deteksi:

0–100 ppm

Jangkauan yang Diperpanjang:

200 ppm

Arus Dasar:

<± 0,2 μA

Menyoroti:

carbon monoxide gas sensor electrochemical

three electrode gas sensor

CO gas sensor with warranty

4CO-AF 114-010-120 Carbon Monoxide Gas Sensor Electrochemical Three Electrode System

The 4CO-AF is an electrochemical carbon monoxide (CO) gas sensor featuring a low measurement range and high sensitivity, primarily designed for trace-level CO detection in the fields of industrial safety and life support.

Specification:

Parameter	Specification
Zero Drift (-20 to 50°C)	-1 to 5 ppm
Sensitivity	200 ± 50 nA/ppm (Positive Signal)
Response Time	< 15S
Repeatability	< ±2% of signal per month
Linearity Linear up to	200 ppm

Electrical Parameters

Resolution	0.5 ppm
Bias Voltage	0 mV (None)
Recommended Resistance	5–30 Ω

Physical Properties

Weight	< 5 g
Orientation requirement	None

Work Environment

Intended Use	Suitable for most life safety detectors
Operating Temperature Range	-40 to 50°C
Operating Pressure Range	800–1200 mbar
Operating Humidity Range	15%–90% RH (non-condensing)

4CO-AF 114-010-120 Carbon Monoxide Gas Sensor Electrochemical Three Electrode System 0
