AHT2415C00 Temperature & Humidity Probe for HVAC Systems Home Appliances Food Industry

Gambar besar : AHT2415C00 Temperature & Humidity Probe for HVAC Systems Home Appliances Food Industry

Detail produk:

Tempat asal:	CN
Nomor model:	AHT2415C00

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Harga:	dapat dinegosiasikan
Kemasan rincian:	Kotak Kertas
Waktu pengiriman:	5-8 hari
Syarat-syarat pembayaran:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan:	5000 buah

Kontak

AHT2415C00 Temperature & Humidity Probe for HVAC Systems Home Appliances Food Industry

Deskripsi

Tegangan Pasokan:	2,2~5,5VDC	Arus suplai:	980μA
Rentang Pengukuran Suhu:	-40~85℃	Pengulangan suhu:	± 0,1 ℃
Suhu Penyimpanan:	-40~90℃	Antarmuka komunikasi:	I2C
Menyoroti:	HVAC temperature humidity probe , food industry humidity sensor , home appliance temperature probe

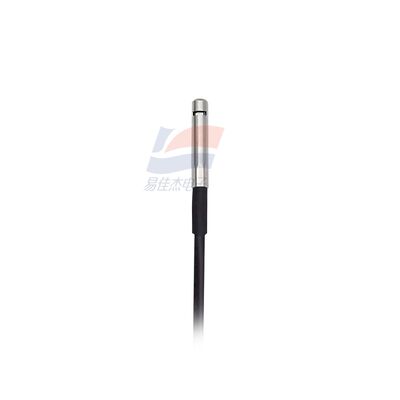

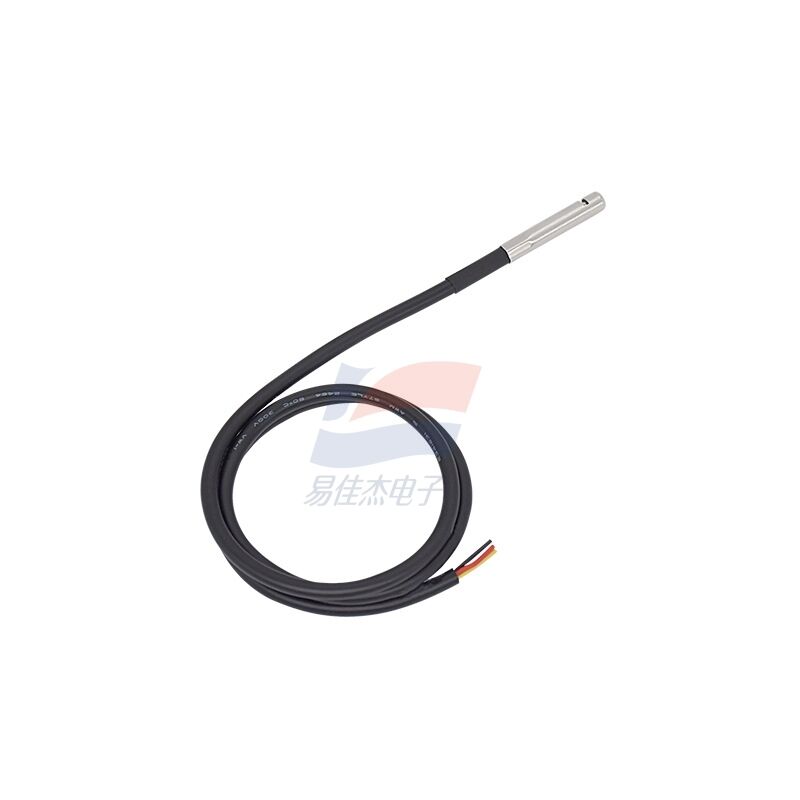

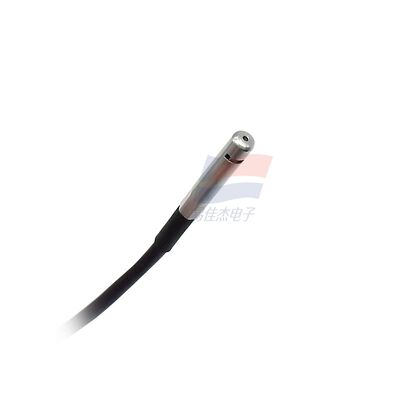

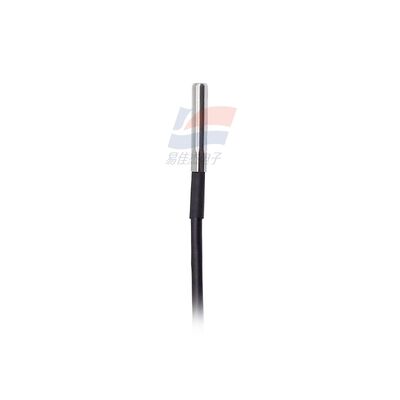

AHT2415C00 Temperature & Humidity Probe for HVAC Systems Home Appliances Food Industry

Key Features:

304 stainless steel housing + waterproof adhesive
Fully calibrated, digital I²C interface
High stability, fast response & recovery
Strong anti-interference capability
Excellent resistance to impact, heat, low temperature & chemicals

Electrical Parameters:

Operating voltage: 2.2–5.5V
Typical current: 980μA
Typical power: 3.2mW
Temp range: −30–80°C
Humidity range: 0–100%RH
Typical accuracy: Temp ±0.5°C; RH ±3%RH
Interface: I²C

Parameter	Min	Typ	Max	Unit	Test Condition
Supply Voltage	2.2	-	5.5	V DC	Normal operation
Supply Current	-	980	-	μA	Working state
Power Consumption (Measurement)	-	3.2	-	mW	Typical value
Temperature Measurement Range	-40	-	85	℃	Full range
Humidity Measurement Range	0	-	100	%RH	Non-condensing
Temperature Accuracy	-	±0.3	±0.5	℃	25℃, standard atmosphere
Humidity Accuracy	-	±2	±3	%RH	25℃, 40~60%RH
Temperature Repeatability	-	±0.1	-	℃	Typical value
Humidity Repeatability	-	±0.1	-	%RH	Typical value
Temperature Resolution	-	0.01	-	℃	Digital output
Humidity Resolution	-	0.024	-	%RH	Digital output
Communication Interface	-	I²C	-	-	Standard protocol
I/O Pin Voltage Range	-0.3	-	VDD+0.3	V	Digital I/O (SDA/SCL)
Pin Input Current	-10	-	10	mA	Per pin
Cable Length	545	550	555	mm	Standard configuration (customizable)
Operating Temperature	-40	-	85	℃	Same as measurement range
Storage Temperature	-40	-	90	℃	Sealed packaging
Shell Material	-	SUS304 Stainless Steel	-	-	Industrial grade
Protective Film	-	PTFE Dust-proof Breathable Film	-	-	Internal probe

AHT2415C00 Temperature & Humidity Probe for HVAC Systems Home Appliances Food Industry 0
