ME3-CH2O Formaldehyde Electrochemical Gas Sensor Indoor Environmental air Concentration Detector

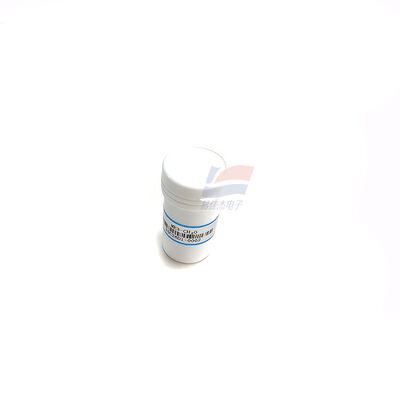

Gambar besar : ME3-CH2O Formaldehyde Electrochemical Gas Sensor Indoor Environmental air Concentration Detector

Detail produk:

Tempat asal:	CN
Nomor model:	ME3-CH2O

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	dapat dinegosiasikan
Kemasan rincian:	Kotak Kertas
Waktu pengiriman:	3-5 hari kerja
Syarat-syarat pembayaran:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan:	5000 buah

Kontak

ME3-CH2O Formaldehyde Electrochemical Gas Sensor Indoor Environmental air Concentration Detector

Deskripsi

Sasaran Gas:	Formaldehida	Rentang Pengukuran:	0 ~ 10 ppm
Kelebihan muatan maksimum:	100 ppm	Kepekaan:	(11,8 ± 6)
Resolusi:	0,1 ppm	Waktu respons (T90):	≤ 90 detik
Menyoroti:	formaldehyde electrochemical gas sensor , indoor air concentration detector , ME3-CH2O gas sensor

ME3-CH2O Formaldehyde Electrochemical Gas Sensor Indoor Environmental air Concentration Detector

Features:

Electrochemical principle, current output proportional to concentrationWinsen Electronics
Low power consumption, high precision & high sensitivityWinsen Electronics
Wide linear range, good anti‑interferenceWinsen Electronics
Excellent repeatability & long‑term stability

Applications:

Industrial safety,

environmental monitoring,

indoor air quality,

formaldehyde detection instruments,

hygiene & occupational safety

Target Gas	Formaldehyde (CH2O, HCHO)
Measurement Range	0 ~ 10 ppm
Maximum Overload	100 ppm
Sensitivity	(11.8 ± 6) µA/ppm
Resolution	0.1 ppm
Response Time (T90)	≤ 90 seconds
Bias Voltage	300 mV
Recommended Load Resistance	300 Ω
Repeatability	< 2% of output value
Long-term Drift	< 2% per month
Operating Temperature	-20°C to +50°C
Operating Humidity	15% ~ 90% RH (non-condensing)
Service Life	2 years (in ambient air)
Package	Standard 4-series (Ø20.3 x 16.6 mm)

ME3-CH2O Formaldehyde Electrochemical Gas Sensor Indoor Environmental air Concentration Detector 0
