Pressure Sensors 26PCFFA6G for Espiratory Devices Medical Gas Pressure Monitoring Air Duct Pressure

Pressure Sensors 26PCFFA6G for Espiratory Devices Medical Gas Pressure Monitoring Air Duct Pressure
Pressure Sensors 26PCFFA6G for Espiratory Devices Medical Gas Pressure Monitoring Air Duct Pressure Pressure Sensors 26PCFFA6G for Espiratory Devices Medical Gas Pressure Monitoring Air Duct Pressure Pressure Sensors 26PCFFA6G for Espiratory Devices Medical Gas Pressure Monitoring Air Duct Pressure Pressure Sensors 26PCFFA6G for Espiratory Devices Medical Gas Pressure Monitoring Air Duct Pressure Pressure Sensors 26PCFFA6G for Espiratory Devices Medical Gas Pressure Monitoring Air Duct Pressure Pressure Sensors 26PCFFA6G for Espiratory Devices Medical Gas Pressure Monitoring Air Duct Pressure

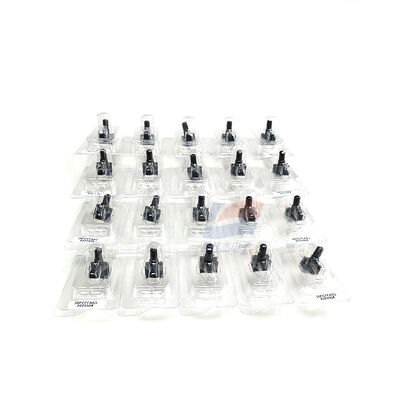

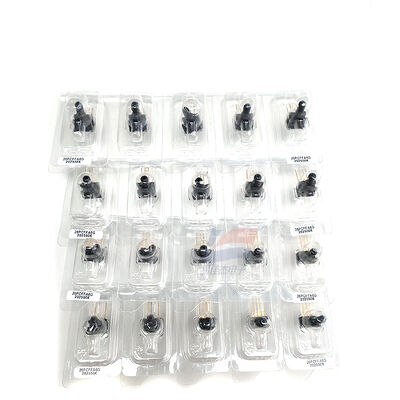

Gambar besar :  Pressure Sensors 26PCFFA6G for Espiratory Devices Medical Gas Pressure Monitoring Air Duct Pressure

Detail produk:
Tempat asal: Amerika Serikat
Nomor model: 26pcffa6g
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: dapat dinegosiasikan
Kemasan rincian: Kotak Kertas
Waktu pengiriman: 3-5 hari kerja
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan: 5000 buah
Kontak

Pressure Sensors 26PCFFA6G for Espiratory Devices Medical Gas Pressure Monitoring Air Duct Pressure

Deskripsi
Tegangan Catu Daya: 10~16V Suhu Kerja: -40~+85
Suhu Penyimpanan: -55~+100 Dampak: 150 gram
Menyoroti:

medical gas pressure sensor

,

air duct pressure sensor 26PCFFA6G

,

espiratory device pressure sensor



                Pressure Sensors 26PCFFA6G for Espiratory Devices Medical Gas Pressure Monitoring Air Duct Pressure





Features:

  • High precision piezoresistive gauge pressure sensor with stable performance.
  • Temperature compensated design, minimizes temperature drift error.
  • Unamplified low-level voltage output for high-resolution detection.
  • Wide operating temperature range (-40℃ ~ +85℃), suitable for harsh environments.
  • Compact SIP-4 through-hole package, easy for PCB installation.
  • Compatible with dry gas and non-corrosive liquid media.
  • Fast response time within 1 ms for real-time pressure monitoring.







Applications:

  • Medical Equipment: Respiratory devices, medical gas pressure monitoring.
  • Industrial Automation: Pneumatic and hydraulic system pressure detection.
  • HVAC System: Air duct pressure and fluid pipeline monitoring.
  • Instrumentation: Portable pressure calibrators and testing equipment.
  • General Industry: Nitrogen, oxygen and other inert gas pressure measurement.



Sensor Model 26PCFFA6G
Pressure Type Gauge Pressure
Detection Range 0 ~ 100 PSI
Maximum Overload Pressure 200 PSI
Supply Voltage 10 VDC (Typical)
Output Voltage 0 ~ 100 mV
Response Time ≤ 1 ms
Media Type Dry Gas & Non-corrosive Liquid
Working Temperature -40 ℃ ~ +85 ℃
Package Type SIP-4 Through-hole
Pressure Port Single Axial Barbless Port
Characteristic Temperature Compensated, Unamplified



Pressure Sensors 26PCFFA6G for Espiratory Devices Medical Gas Pressure Monitoring Air Duct Pressure 0



Label:

Sensor Tekanan Berisi Minyak,

Sensor Tekanan Piezoresistif,

Sensor Tekanan Diferensial Piezoresistif
