ME3-CS2 Carbon Disulfide (CS2) Gas Sensor for Carbon Disulfide (CS2) Gas Detection in Petroleum Petrochemical Pharmaceutical

ME3-CS2 Carbon Disulfide (CS2) Gas Sensor for Carbon Disulfide (CS2) Gas Detection in Petroleum Petrochemical Pharmaceutical
ME3-CS2 Carbon Disulfide (CS2) Gas Sensor for Carbon Disulfide (CS2) Gas Detection in Petroleum Petrochemical Pharmaceutical

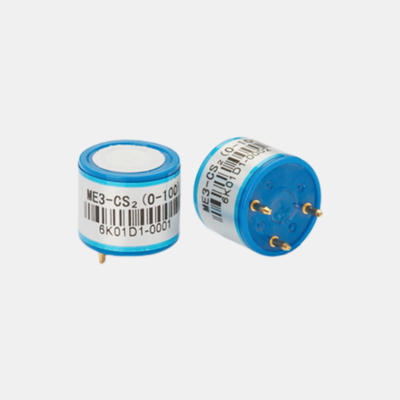

Gambar besar :  ME3-CS2 Carbon Disulfide (CS2) Gas Sensor for Carbon Disulfide (CS2) Gas Detection in Petroleum Petrochemical Pharmaceutical

Detail produk:
Tempat asal: CN
Nomor model: ME3-CS2
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: dapat dinegosiasikan
Kemasan rincian: Kotak Kertas
Waktu pengiriman: 3-5 hari kerja
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan: 5000 buah
Kontak

ME3-CS2 Carbon Disulfide (CS2) Gas Sensor for Carbon Disulfide (CS2) Gas Detection in Petroleum Petrochemical Pharmaceutical

Deskripsi
Rentang Pengukuran Standar: 0-100 ppm Batas pengukuran maksimum: 200 ppm
Kepekaan: (0,9±0,3) uA/ppm Resolusi: 0,1 ppm
Waktu Respons: < 120 detik Tegangan bias: 300 mV
Menyoroti:

Carbon Disulfide gas sensor

,

CS2 gas detection sensor

,

Petrochemical CS2 gas sensor



   ME3-CS2 Carbon Disulfide (CS2) Gas Sensor for Carbon Disulfide (CS2) Gas Detection in Petroleum Petrochemical Pharmaceutical







Product Features:


Low power consumption, high accuracy and high sensitivity.
Wide linear range, strong anti‑interference capability.
Excellent repeatability and stability.
Temperature compensation with superior linear output.
UART and PWM output available.
Long service life (up to 2 years).
Resists moisture interference, no poisoning.


Applications:


Petroleum & petrochemical industry.
Pharmaceutical manufacturing.
Environmental protection and air quality monitoring.





Target Detection Gas Carbon Disulfide (CS2)
Standard Measurement Range 0-100 ppm
Maximum Measurement Limit 200 ppm
Sensitivity (0.9±0.3) uA/ppm
Resolution 0.1 ppm
Response Time < 120 s
Bias Voltage 300 mV
Recommended Load Resistance 10 Ω
Repeatability < 2% of output value
Long-term Stability (per month) < 2%
Zero Drift (-20℃ to 40℃) 4 ppm
Operating Temperature Range -20℃ to 50℃
Operating Humidity Range 15% to 90% RH (non-condensing)
Operating Pressure Range Standard atmospheric pressure ± 10%



ME3-CS2 Carbon Disulfide (CS2) Gas Sensor for Carbon Disulfide (CS2) Gas Detection in Petroleum Petrochemical Pharmaceutical 0
