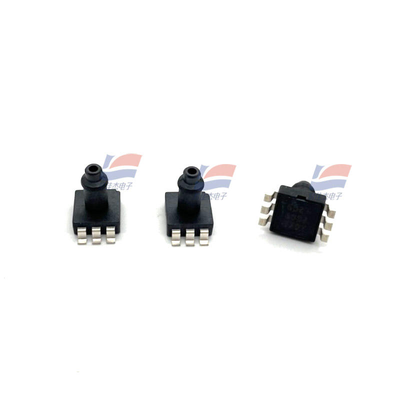

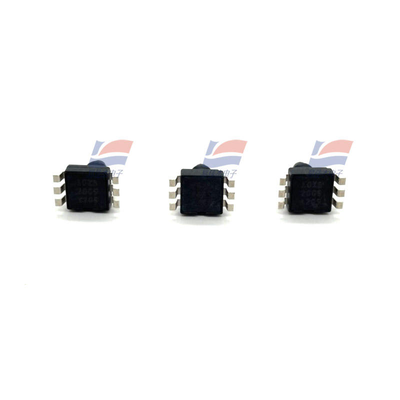

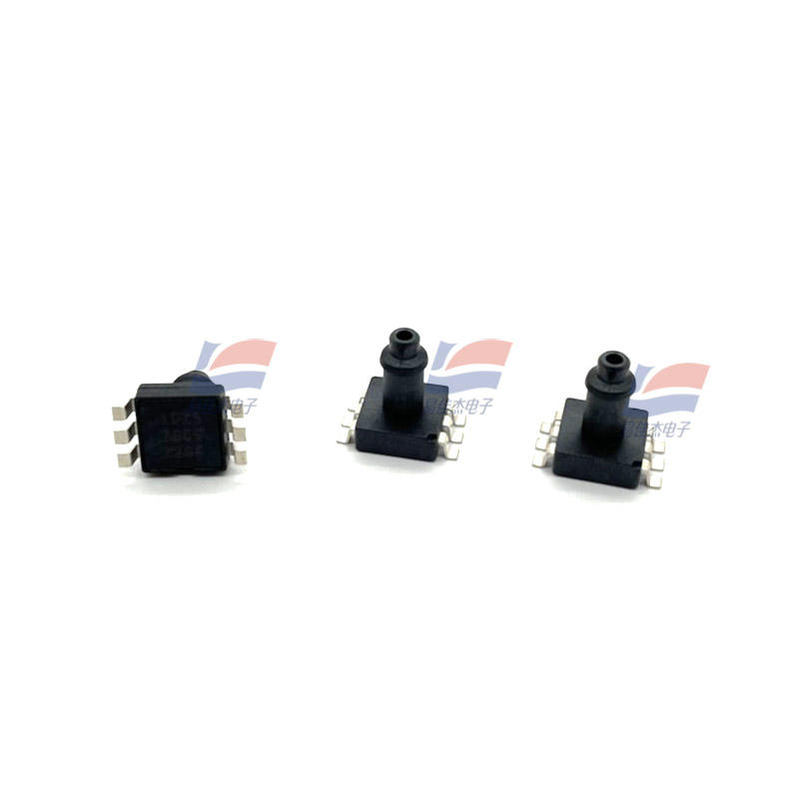

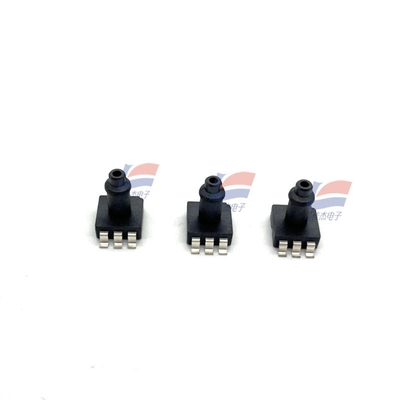

XGZP163-101S Pressure Sensors Unamplified Surface-Mount SOP-6 Packing

XGZP163-101S Pressure Sensors Unamplified Surface-Mount SOP-6 Packing
XGZP163-101S Pressure Sensors Unamplified Surface-Mount SOP-6 Packing XGZP163-101S Pressure Sensors Unamplified Surface-Mount SOP-6 Packing XGZP163-101S Pressure Sensors Unamplified Surface-Mount SOP-6 Packing XGZP163-101S Pressure Sensors Unamplified Surface-Mount SOP-6 Packing

Gambar besar :  XGZP163-101S Pressure Sensors Unamplified Surface-Mount SOP-6 Packing

Detail produk:
Tempat asal: Yjj
Nama merek: YJJ
Nomor model: XGZP163-101S
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: dapat dinegosiasikan
Kemasan rincian: Kotak standar
Waktu pengiriman: 3-5 Workingdays
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union
Menyediakan kemampuan: 1000 buah/bulan
Kontak

XGZP163-101S Pressure Sensors Unamplified Surface-Mount SOP-6 Packing

Deskripsi
Jangkauan: 0–10 kPa Keluaran: Khas 50 mV @ 5 V
Catu Daya: Tegangan konstan 5 V Resistensi jembatan: 5 kΩ ± 1 kΩ
Menyoroti:

unamplified pressure sensor SOP-6

,

surface-mount pressure sensor XGZP163-101S

,

electronic pressure sensor with warranty

XGZP163-101S Pressure Sensors Unamplified Surface-Mount SOP-6 Packing



The XGZP163-101S is a MEMS piezoresistive gauge pressure sensor featuring a 0–10 kPa measurement range and an SOP-6 surface-mount package with a vertical pressure port. Designed for low cost, compact size, and high stability, it is suitable for low-pressure measurement applications in medical devices and consumer electronics.



Typical Applications
* Medical: Electronic blood pressure monitors, ventilators, oxygen concentrators, patient monitors
* Consumer Electronics: Coffee machines, vacuum cleaners, humidifiers, pneumatic massage devices
* Industrial: Micro air pumps, air pressure monitoring, HVAC, pneumatic control



Specification:

Zero-point output -5 to +10 mV
Full-scale output 35 to 65 mV (typical 50 mV)
Non-linearity ≤±0.5% FS
Operating temperature -30°C to +100°C
Package SOP-6; PPS housing; silver-plated copper pins; gold wire bonding; approx. 0.4 g
Pressure port Vertical port with anti-slip design; compatible with φ4 mm tubing
Media Non-corrosive dry air/gas


XGZP163-101S Pressure Sensors Unamplified Surface-Mount SOP-6 Packing 0
