Detail produk:
|
| Active area: | D10mm | Reverse Voltage: | 1V |
|---|---|---|---|
| Operating temperature: | -25 to +70℃ | Storage temperature: | -25 to +70℃ |
| Spectral response range: | 0.9 to 1.7um | ||
| Menyoroti: | LD Power Monitor PIN Photodiode,Low Dark Current PIN Photodiode |
||

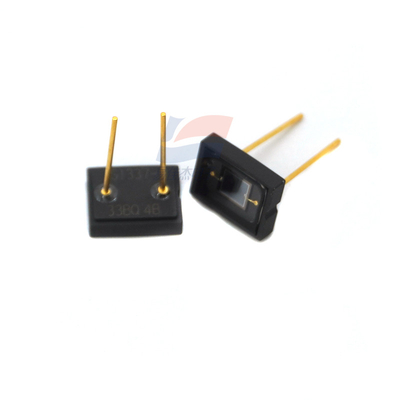

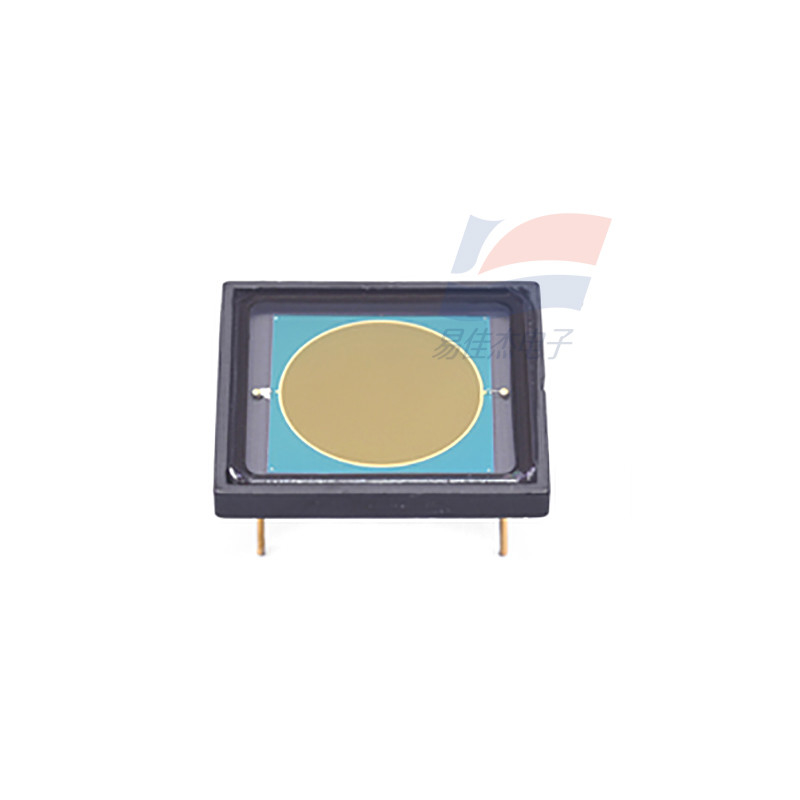

G8370-10 InGaAs PIN Photodiode Low Dark Current LD Power Monitor
Fitur
1Luas aktif besar: ф10 mm
2Sensitivitas tinggi: 0,95 A/W tip.
3. arus gelap rendah
4. PDL rendah: 5 mdB tipikal, 10 mdB maksimal.
5. Foto respon non-seragam: ± 2% tipikal.
Aplikasi
1. BLD power monitor
2. LD peralatan penuaan
| Jangkauan respon spektral | 0.9 sampai 1.7um |
| Panjang gelombang sensitivitas puncak | 1.55um |
| Sensitivitas foto | 0.8-0.85A/W |
| Arus gelap | 0.2 sampai 2 uA |
| Resistensi Shunt | 50KΩ |
