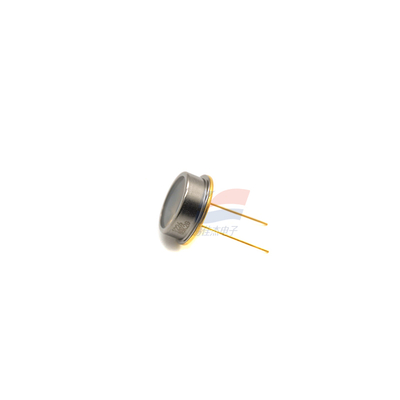

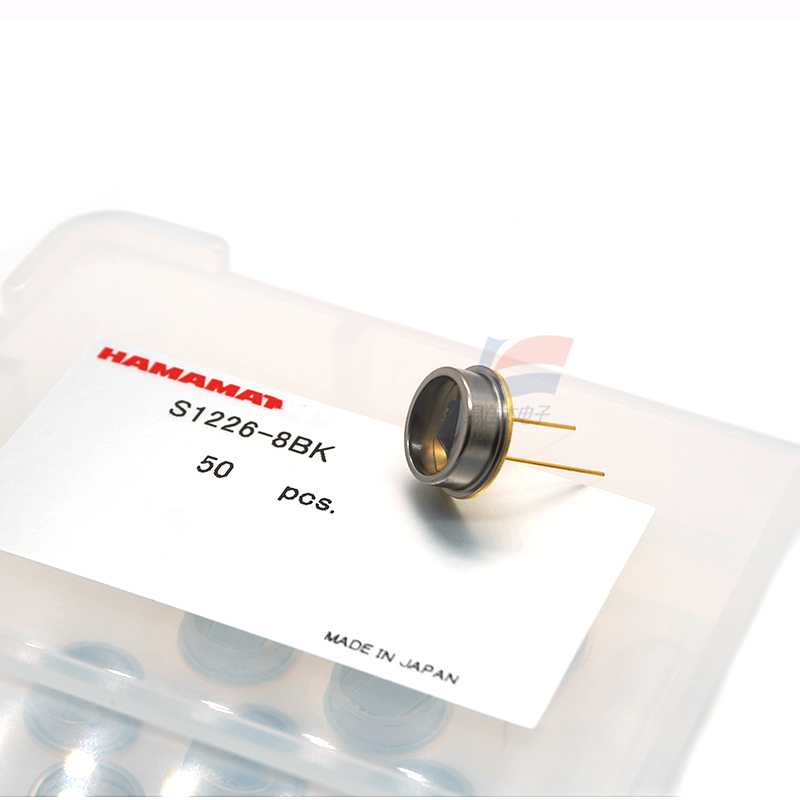

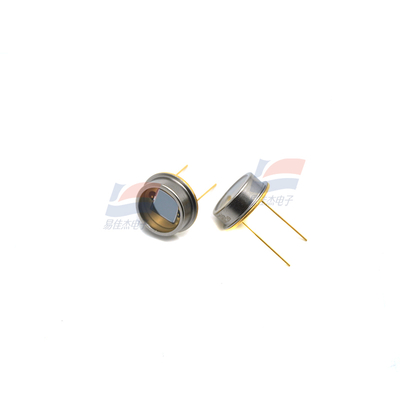

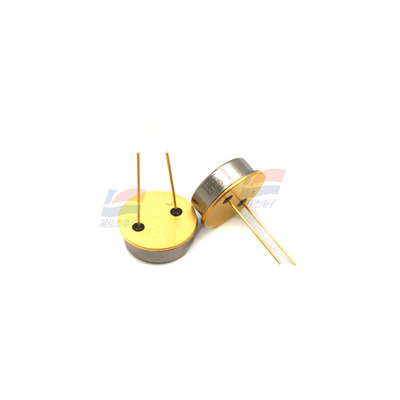

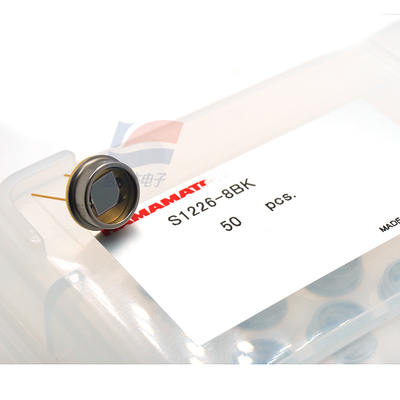

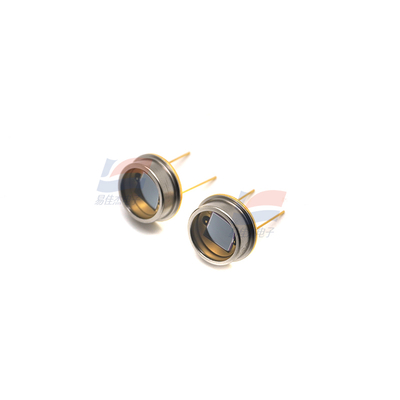

S1226-8BK Si PhotodiodeSuppressed Near IR Sensitivity UV to Visible

S1226-8BK Si PhotodiodeSuppressed Near IR Sensitivity UV to Visible
S1226-8BK Si PhotodiodeSuppressed Near IR Sensitivity UV to Visible S1226-8BK Si PhotodiodeSuppressed Near IR Sensitivity UV to Visible S1226-8BK Si PhotodiodeSuppressed Near IR Sensitivity UV to Visible S1226-8BK Si PhotodiodeSuppressed Near IR Sensitivity UV to Visible S1226-8BK Si PhotodiodeSuppressed Near IR Sensitivity UV to Visible S1226-8BK Si PhotodiodeSuppressed Near IR Sensitivity UV to Visible

Gambar besar :  S1226-8BK Si PhotodiodeSuppressed Near IR Sensitivity UV to Visible

Detail produk:
Tempat asal: Jepang
Nama merek: Hamamatsu
Nomor model: S1226-8BK
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: dapat dinegosiasikan
Kemasan rincian: Kotak standar
Waktu pengiriman: 3-5 Workingdays
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan: 3000 pcs/bulan
Kontak

S1226-8BK Si PhotodiodeSuppressed Near IR Sensitivity UV to Visible

Deskripsi
Kemasan: KE-8 Ukuran area fotosensitif: 5.8*5.8mm
Tegangan Terbalik VR Max: 5v Suhu operasi: -40 Hingga +100℃
Menyoroti:

UV photodiode sensor with suppressed IR

,

Si photodiode for UV to visible

,

S1226-8BK photodiode near IR suppressed

S1226-8BK Si PhotodiodeSuppressed Near IR Sensitivity UV to Visible



Features
Suppressed near IR sensitivity
High sensitivity in UV region (quartz glass type)
Low dark current
High reliability



Applications
>Analytical equipment
>Optical measurement equipment, etc.



Specification:

Spectral response range
 320 to 1000 nm
Peak sensitivity wavelength (typ.) 720 nm
Photosensitivity (typ.) 0.36 A/W
Dark current (max.) 20 pA
Rise time (typ.) 2 μs
Terminal capacitance (typ.) 1200 pF
Noise equivalent power (typ.) 5.0×10-15 W/Hz1/2

S1226-8BK Si PhotodiodeSuppressed Near IR Sensitivity UV to Visible 0
