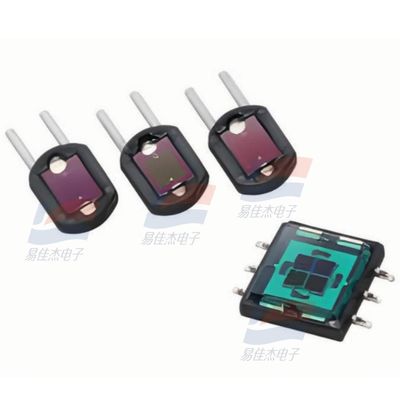

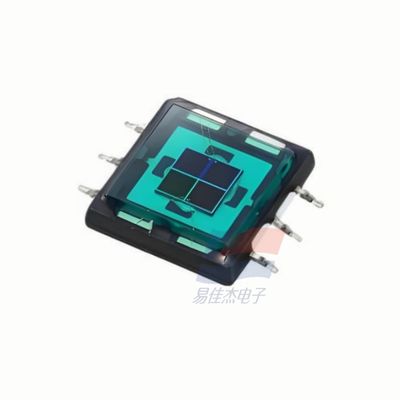

S7505-01 Si Photodiode RGB Color Surface Mount Type Plastic Materials

S7505-01 Si Photodiode RGB Color Surface Mount Type Plastic Materials
S7505-01 Si Photodiode RGB Color Surface Mount Type Plastic Materials S7505-01 Si Photodiode RGB Color Surface Mount Type Plastic Materials

Gambar besar :  S7505-01 Si Photodiode RGB Color Surface Mount Type Plastic Materials

Detail produk:
Tempat asal: JEPANG
Nama merek: Hamamatsu
Nomor model: S7505-01
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: dapat dinegosiasikan
Kemasan rincian: Paket Standar
Waktu pengiriman: 3-5 Workingdays
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan: 10000PCS/bulan
Kontak

S7505-01 Si Photodiode RGB Color Surface Mount Type Plastic Materials

Deskripsi
Jenis Produk: Fotodioda RGB Materi paket: Plastik
Jenis Paket: Jenis Dudukan Permukaan Ukuran paket: 9,0 × 9,6 × 2,1mm
Menyoroti:

Si photodiode RGB color sensor

,

surface mount photodiode plastic materials

,

UV photodiode sensor S7505-01

S7505-01 Si Photodiode RGB Color Surface Mount Type Plastic Materials





RGB color sensor
The S7505-01 uses a 3-channel (RGB) photodiode having blue, green and red sensitivities, and is molded into a surface mount type package.


Features
-3 ch (RGB) Si photodiode
-Surface mount type plastic package (9 × 9.6 mm)
-High sensitivity



Specifications

Photosensitive area  3.2 × 3.2 mm
Spectral response range (Blue)  400 to 540 nm
Spectral response range (Green)  480 to 600 nm
Spectral response range (Red)  590 to 720 nm
Peak sensitivity wavelength (Blue)  460 nm
Peak sensitivity wavelength (Green)  540 nm
Peak sensitivity wavelength (Red)  620 nm
Photosensitivity (Blue)  0.18 A/W
Photosensitivity (Green)  0.23 A/W
Photosensitivity (Red)  0.16 A/W
Dark current (max.)  0.2 nA
Rise time  0.5 μs
Operating temperature  -10 to +60 deg.C
Storage temperature  -20 to +70 deg.C



Structure

Photosensitive area size/mm Green,Red: 1.5*1.5 Blue: 1.5*1.5(2 elements)
Effective photosensitive area/mm2 Green, Red: 2.25 Blue: 4.5
Reverse voltage VR max (v)  10
Operating temperature Topr(℃) -10 to +60
Storage temperature Tstg(℃)  -20 to +70
