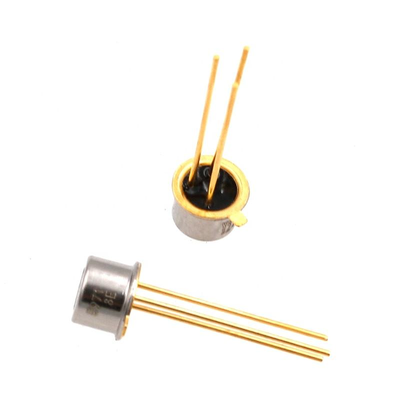

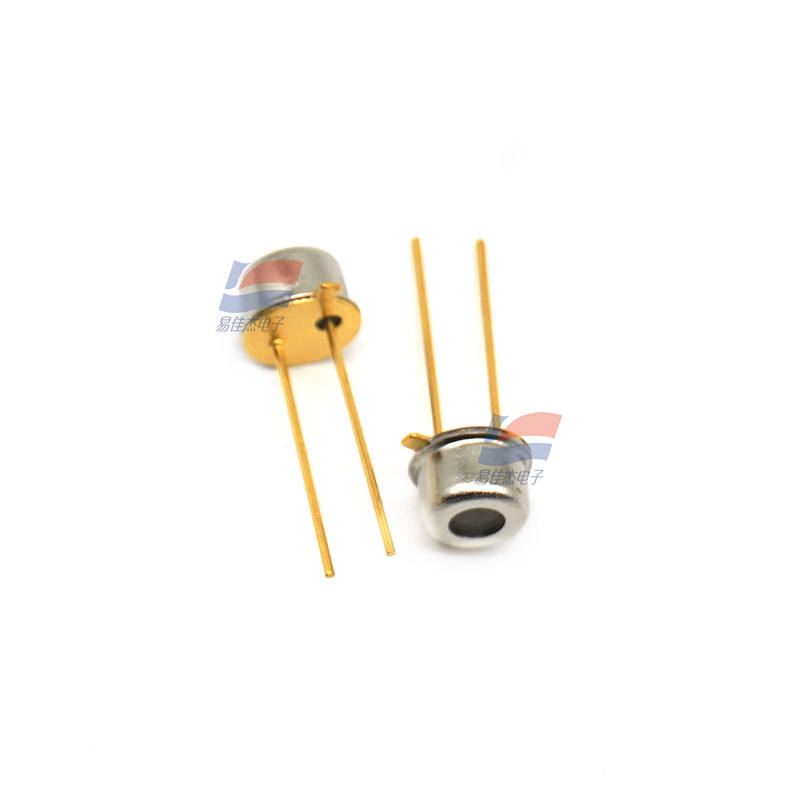

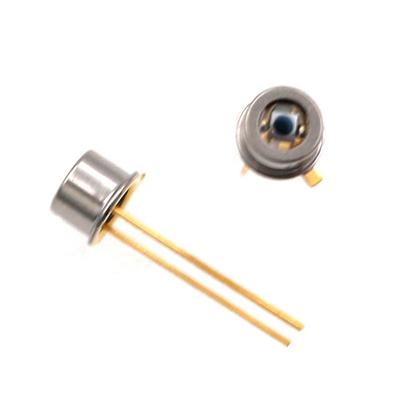

S5971 Si PIN Photodiode High Speed Photodiodes Metal Non-cooled

S5971 Si PIN Photodiode High Speed Photodiodes Metal Non-cooled
S5971 Si PIN Photodiode High Speed Photodiodes Metal Non-cooled S5971 Si PIN Photodiode High Speed Photodiodes Metal Non-cooled S5971 Si PIN Photodiode High Speed Photodiodes Metal Non-cooled

Gambar besar :  S5971 Si PIN Photodiode High Speed Photodiodes Metal Non-cooled

Detail produk:
Tempat asal: JEPANG
Nama merek: Hamamatsu
Nomor model: S5971
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: dapat dinegosiasikan
Kemasan rincian: Kotak standar
Waktu pengiriman: 3-5 hari kerja
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union
Menyediakan kemampuan: 10000 buah/bulan
Kontak

S5971 Si PIN Photodiode High Speed Photodiodes Metal Non-cooled

Deskripsi
Daerah fotosensitif: φ1.2 mm Kemasan: Logam
Kategori paket: KE-18 Pendinginan: Tidak didinginkan
Menyoroti:

high speed Si PIN photodiode

,

non-cooled UV photodiode sensor

,

metal case S5971 photodiode

S5971 Si PIN Photodiode High Speed Photodiodes Metal Non-cooled



High-speed response (100 MHz)

The S5971 is a high-speed Si PIN photodiode designed for visible to near infrared light detection. This photodiode provides wideband characteristics at a low bias, making them suitable for optical communications and other high-speed photometry.


Features
- High-speed response: 100 MHz (VR=10 V)
- Low price
- High reliability



Applications
*Optical fiber communications
*High-speed photometry
*Violet laser detection (s5973-02)



Specification:

Reverse voltage (max.)
20 V
Spectral response range 320 to 1060 nm
Peak sensitivity wavelength (typ.) 920 nm
Photosensitivity (typ.) 0.55 A/W
Dark current (max.) 1000 pA
Cutoff frequency (typ.) 100 MHz
Terminal capacitance (typ.) 3 pF
Noise equivalent power (typ.) 7.4×10-15 W/Hz1/2



S5971 Si PIN Photodiode High Speed Photodiodes Metal Non-cooled 0
