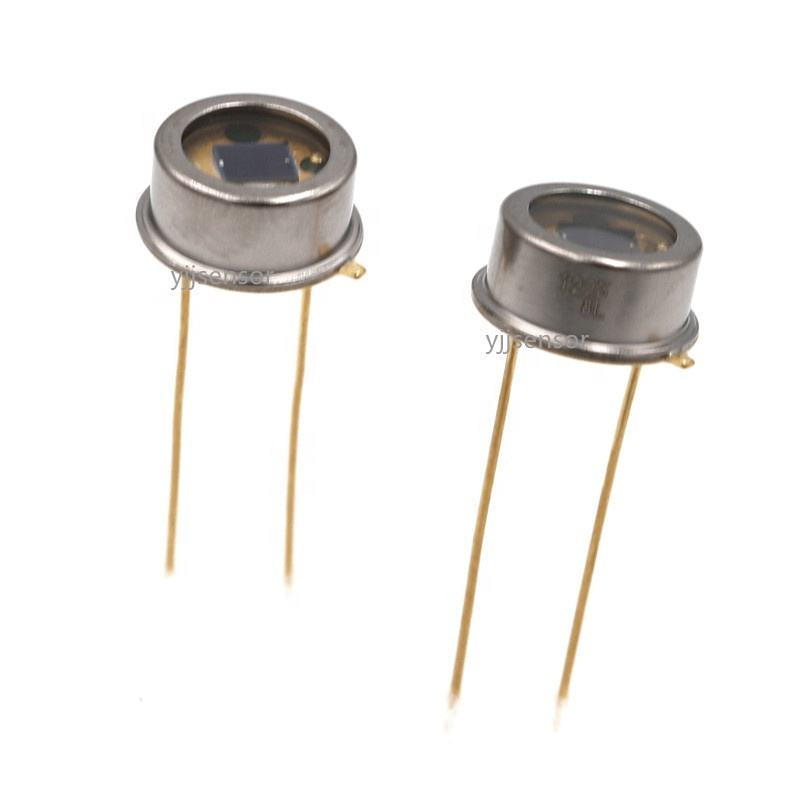

S1223-01 Si PIN Photodiode For Visible to Near IR Precision Photometry

S1223-01 Si PIN Photodiode For Visible to Near IR Precision Photometry
S1223-01 Si PIN Photodiode For Visible to Near IR Precision Photometry S1223-01 Si PIN Photodiode For Visible to Near IR Precision Photometry

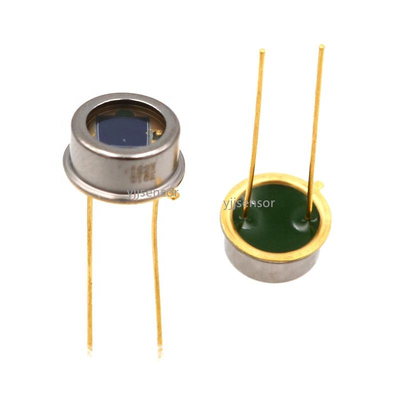

Gambar besar :  S1223-01 Si PIN Photodiode For Visible to Near IR Precision Photometry

Detail produk:
Tempat asal: JEPANG
Nama merek: Hamamatsu
Nomor model: S1223-01
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: dapat dinegosiasikan
Kemasan rincian: Kotak standar
Waktu pengiriman: 3-5 hari kerja
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union
Menyediakan kemampuan: 1000 buah/bulan
Kontak

S1223-01 Si PIN Photodiode For Visible to Near IR Precision Photometry

Deskripsi
Daerah fotosensitif: 3,6 × 3,6 mm Kemasan: Logam
Kategori paket: To-5 Pendinginan: Tidak didinginkan
Menyoroti:

Si PIN photodiode for precision photometry

,

UV photodiode sensor for near IR

,

Visible to near IR photodiode sensor

S1223-01 Si PIN Photodiode For Visible to Near IR Precision Photometry



Features
-High sensitivity in visible to near infrared range
- High reliability
-High-speed response: fc=20 MHz
-Low capacitance



Specification:

Reverse voltage (max.)
30 V
Spectral response range 320 to 1100 nm
Peak sensitivity wavelength (typ.) 960 nm
Photosensitivity (typ.) 0.52 A/W
Dark current (max.) 10000 pA
Cutoff frequency (typ.) 20 MHz
Terminal capacitance (typ.) 20 pF
Noise equivalent power (typ.) 1.3×10-14 W/Hz1/2



S1223-01 Si PIN Photodiode For Visible to Near IR Precision Photometry 0
