281637 282049 282051 Flow sensor For Medical ventilators

281637 282049 282051 Flow sensor For Medical ventilators
281637 282049 282051 Flow sensor For Medical ventilators 281637 282049 282051 Flow sensor For Medical ventilators 281637 282049 282051 Flow sensor For Medical ventilators 281637 282049 282051 Flow sensor For Medical ventilators 281637 282049 282051 Flow sensor For Medical ventilators 281637 282049 282051 Flow sensor For Medical ventilators 281637 282049 282051 Flow sensor For Medical ventilators

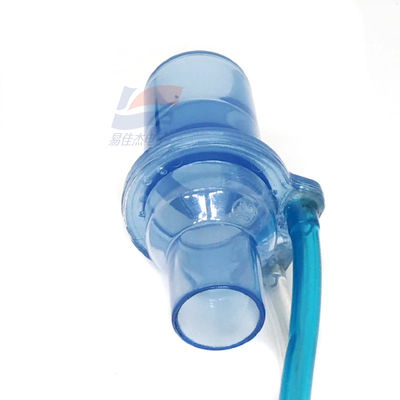

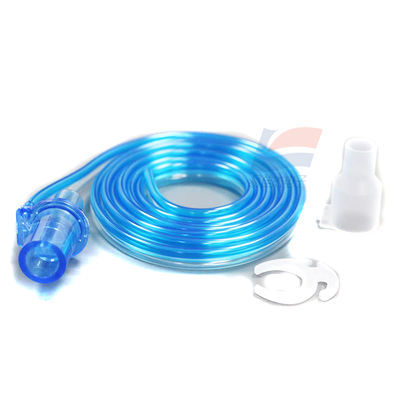

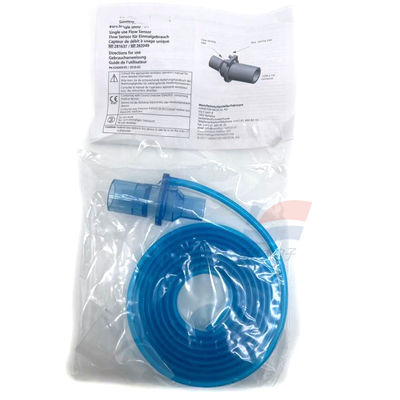

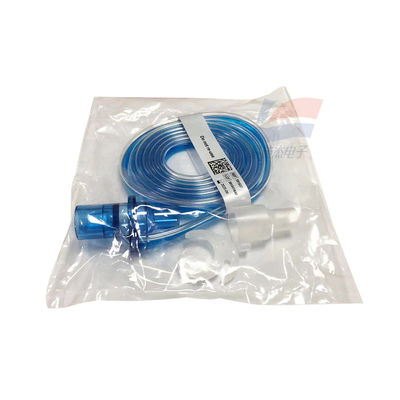

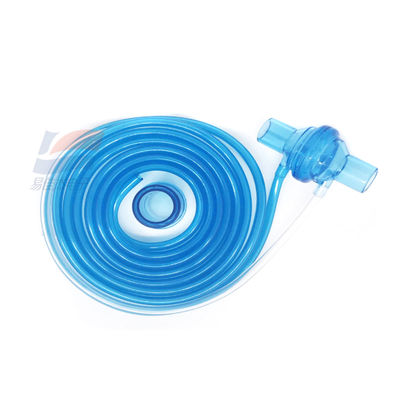

Gambar besar :  281637 282049 282051 Flow sensor For Medical ventilators

Detail produk:
Tempat asal: Amerika Serikat
Nomor model: 281637 282049 282051
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 pcs
Harga: dapat dinegosiasikan
Kemasan rincian: Kemasan Standar
Waktu pengiriman: 5-8 hari kerja
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan: 5000pcs
Kontak

281637 282049 282051 Flow sensor For Medical ventilators

Deskripsi
Rentang aliran: 0 hingga 180 L/mnt (jangka pendek 260 L/mnt) Ruang mati: <11 ml (fungsional)
Perlawanan: <0,027 cmh2o/(l/mnt) di atas rentang aliran lengkap (-180 L/mnt hingga 180 L/mnt) Suhu: Operasi: -20 ° C hingga 50 ° C (-4 ° F hingga 122 ° F)
Menyoroti:

medical ventilator flow sensor

,

air flow sensor for ventilators

,

medical air flow sensor with warranty



                                           281637 282049 282051 Flow sensor For Medical ventilators





Product Overview:

The 281637 is a compact, industrial-grade gas sensor designed for reliable detection of specific target gases (confirm target gas with manufacturer, e.g., carbon monoxide, methane, volatile organic compounds, or oxygen). It adopts semiconductor (metal oxide) or electrochemical sensing technology (depending on target gas) to deliver fast response, low power consumption, and stable long-term performance. Typical applications include industrial safety monitoring (e.g., factory leak detection), indoor air quality (IAQ) management, smart home safety systems, and portable gas detectors.



No.

Component/Parameter Category

Description

Specification/Details

Material

Remarks
1 Connector Ventilator side OD15 PSU -
2 Tubing - - PVC -
3 Connectors for Tubing Differential pressure measurement - PSU -
4 Direction Index - - - -
5 Individual Serial Number - - - -
6 Connector Patient side OD22/ID15 PSU -
7 Flap - - PET -
- Technical Performance Flow range 0 to 180 l/min (short term: 260 l/min) - -
- Technical Performance Dead space < 11 ml (functional) - -
- Technical Performance Resistance < 0.027 cmH₂O/(l/min) over the complete flow range (-180 l/min to 180 l/min) - -
- Technical Performance Weight - Approx. 14 g (without tubes)
- 68 g (with 188 cm tubes)
- 89 g (with 260 cm tubes)
- 110 g (with 330 cm tubes)		 - -
- Material Compliance Material standards 1. Complies with ISO 10993-1:2009 (biocompatibility)
2. Complies with Directive 2011/65/EU (RoHS)
3. No natural rubber latex, DEHP, or BPA		 - Ensures safety for medical use
- Accuracy (Calibrated Flow Sensor) Volume-related parameters (HAMILTON ventilators) - HAMILTON-C1/T1/MR1/C2/C3/C6: ± 10% or ± 10 ml (whichever is greater)
- HAMILTON-G5/S1: ± 15% or ± 20 ml (whichever is greater)



281637 282049 282051 Flow sensor For Medical ventilators 0
