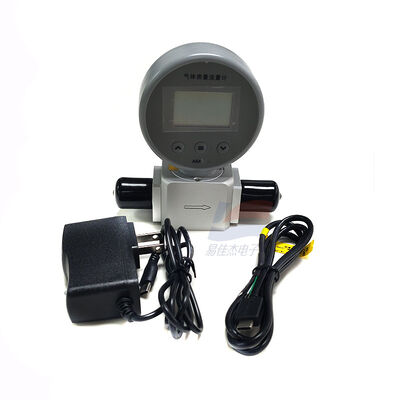

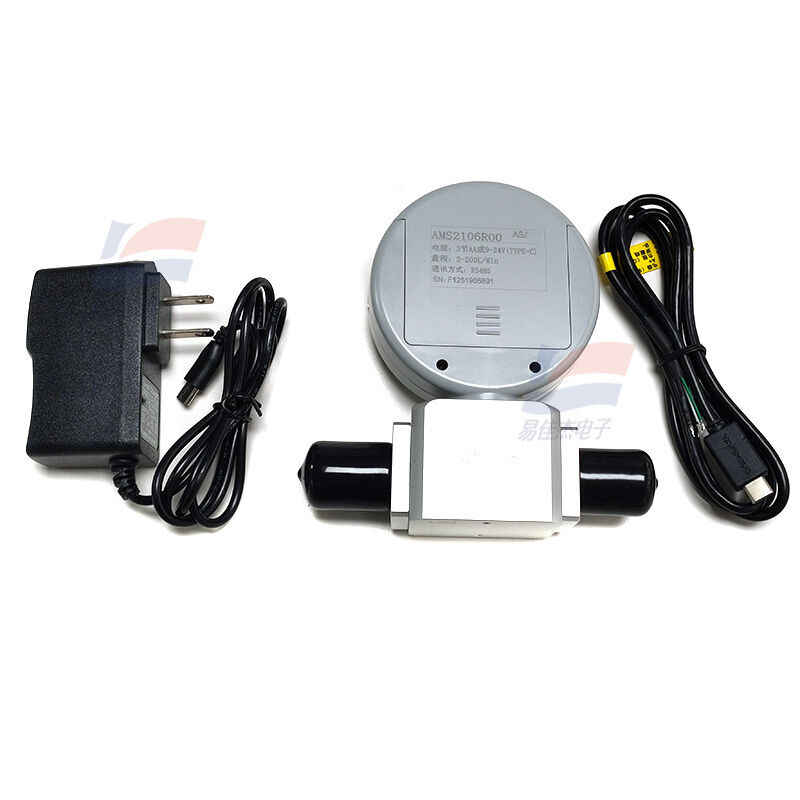

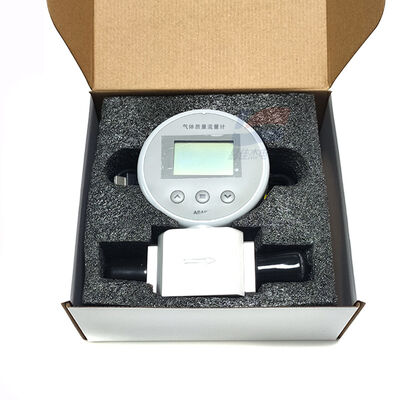

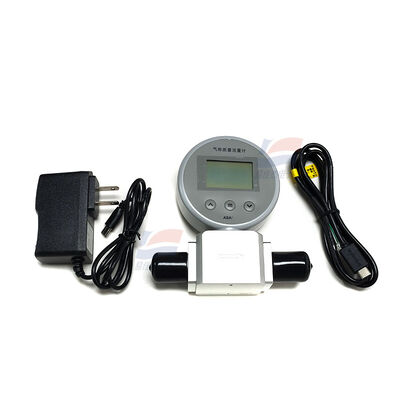

YJJ AMS2106-R00 0-25SLPM Intelligent Digital Gas Mass Flowmeter Medical Field

Product Description:

YJJ AMS2106-R00 0-25SLPM Intelligent Digital Gas Mass Flowmeter Medical Field

Features:

I. Basic Information

Brand: ASAIR (your current core domestic supplier)

Model: AMS2106-R00

Principle: MEMS thermal mass flow measurement, directly measures mass flow, no need for temperature and pressure compensation

R00 meaning: Basic general model, standard range, RS485-Modbus-RTU communication output

Measured gases: air, nitrogen, oxygen, argon, CO₂, etc., clean and dry non-corrosive gases

II. Core Technical Parameters

Range: 0~25 SLPM (standard liters per minute)

Accuracy: ±3%FS; repeatability ≤ 0.5% FS; range ratio 50:1

Output: RS485-Modbus-RTU, supports instantaneous flow + cumulative flow reading

Power supply: 9~24VDC direct current; built-in lithium battery for offline use

Display: Built-in segment display, real-time display of instantaneous flow, cumulative flow, medium temperature

Interface: default NPT3/8 thread, customizable G thread

Material: 6061 aluminum alloy gas path, lightweight, corrosion-resistant

Working pressure: maximum 0.8MPa

Working temperature: -10℃~+60℃

Response time: T90 < 3s, rapid capture of flow rate changes

Additional functions: over-range alarm, multi-gas switching, key parameter configuration, 180° rotating display

III. Main Applications

Research laboratories: gas ratioing, precise monitoring of gas path flow in experiments, university gas experiments

Medical industry: oxygen flow measurement for oxygen generators, respiratory machines, medical gas flow control

Industrial manufacturing: nitrogen protection welding, nitrogen packaging, gas protection, gas flow control for welding / cutting

Environmental monitoring: exhaust gas sampling, smoke gas detection, air sampling pump flow calibration

Smart agriculture / food: gas-controlled preservation, fumigation gas monitoring, fermentation process gas flow control

Analytical instrument accessories: chromatographs, gas detectors, analytical instrument gas path flow monitoring
